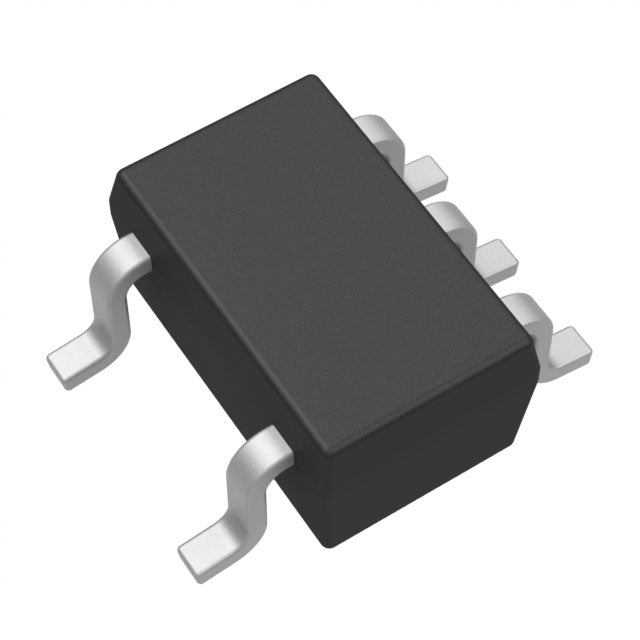

Texas Instruments LP5951MGX-2.8/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.54 | $0.54 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.51 | $12.75 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.43 | $43.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 70 µA |
| PSRR | 60dB ~ 50dB (100Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The LP5951MGX-2.8/NOPB is a low-dropout linear regulator from Texas Instruments, delivering a fixed 2.8V output with up to 150mA of current. Its low 55µA quiescent current and excellent PSRR make it suitable for battery-operated and noise-sensitive applications. Housed in a compact SC-70-5 package, this LDO balances performance and size for modern portable electronics.
- Extended Battery Life: Ultra-low 55µA quiescent current minimizes standby power draw.
- Clean Output: 60dB PSRR at 100Hz reduces supply noise for sensitive loads.
- Compact Footprint: SC-70-5 package saves PCB space in miniaturized designs.
- Reliable Regulation: 350mV dropout at 150mA ensures stable operation near battery end-of-life.
Battery-Powered Portable Devices
The LP5951's low 55µA quiescent current and 150mA output make it ideal for extending battery life in wearables, remote controls, and portable sensors.
Noise-Sensitive Analog Circuits
With PSRR of 60dB at 100Hz and 50dB at 10kHz, this LDO effectively filters power supply noise for precision op-amps and ADC/DAC reference circuits.
Wireless Modules and RF Transceivers
The stable 2.8V rail and good high-frequency PSRR help maintain signal integrity in Bluetooth, Zigbee, and sub-GHz radio modules.
Microcontroller Power Supply
Provides a clean, regulated 2.8V supply for low-power MCUs, ensuring reliable operation during sleep and active modes.
Space-Constrained PCBs
The compact SC-70-5 package (2mm x 2.1mm) fits densely populated designs where board area is critical.
Industrial Sensor Interfaces
Delivers stable voltage to bridge sensors and signal conditioning circuits, minimizing measurement errors from supply variation.
- Q: What is the output voltage of the LP5951MGX-2.8/NOPB?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 350mV at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 55µA.
- Q: What package is available?
- A: It comes in a SC-70-5 package.
