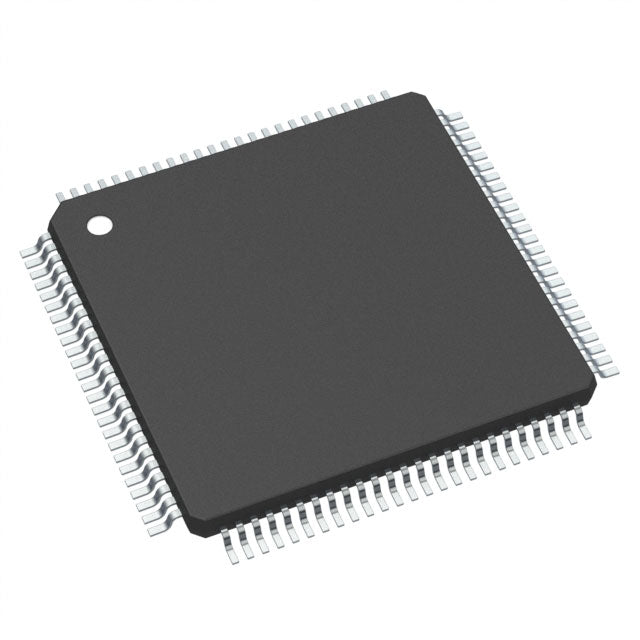

NXP USA Inc. LPC55S69JBD100E
Regular price
$7.84
Regular price
$8.25
Sale price
$7.84
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.84 | $7.84 |
| 15+ | $7.59 | $113.85 |
| 25+ | $7.43 | $185.75 |
| 50+ | $7.01 | $350.50 |
| 100+ | $6.19 | $619.00 |
| N+ | $1.24 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | LPC55S6x |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Dual-Core |
| Speed | 150MHz |
| Connectivity | Flexcomm, I2C, MMC/SD/SDIO, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, RNG, WDT |
| Number of I/O | 64 |
| Program Memory Size | 640KB (640K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 10x16b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-HLQFP (14x14) |
| Package / Case | 100-LQFP Exposed Pad |
| ROHS |  |
The LPC55S69JBD100E from NXP is a dual-core ARM Cortex-M33 MCU running at 150MHz. It provides 640KB flash and 320KB RAM, with a supply voltage range of 1.8V to 3.6V. Packaged in a 100-LQFP Exposed Pad, it is designed for secure, high-performance embedded applications.
- Dual-Core Performance: Two Cortex-M33 cores enable parallel processing for complex tasks.
- Enhanced Security: RNG and secure boot features protect against cyber threats.
- High Memory Capacity: 640KB flash and 320KB RAM support large applications.
- Versatile Connectivity: I2S, DMA, and PWM cover diverse application needs.
Secure Embedded Systems
The dual-core architecture with RNG supports secure boot and trusted execution environments.
Industrial IoT Gateways
150MHz processing and multiple communication interfaces enable robust protocol handling.
Audio Processing
I2S and DMA facilitate high-quality audio streaming in smart speakers.
Motor Control
PWM and high-speed ADC enable precise control of industrial motors.
Smart Home Controllers
Low power modes and rich peripherals suit home automation hubs.
Medical Monitoring
Reliable operation and security features protect patient data in wearable devices.
- Q: What is the core processor?
- A: It features a dual-core ARM Cortex-M33 running at 150MHz.
- Q: How much flash memory is available?
- A: It has 640KB of flash memory.
- Q: What is the RAM size?
- A: It includes 320KB of SRAM.
- Q: What security features are included?
- A: It has a Random Number Generator (RNG) and other security peripherals.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
Base Product Number ：
LPC55S69JBD100E
