Analog Devices Inc. LT1105CN8#PBF
Regular price
Dhs. 45.44
Regular price
Dhs. 47.84
Sale price
Dhs. 45.44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 45.44 | Dhs. 45.44 |
| 15+ | Dhs. 44.01 | Dhs. 660.15 |
| 25+ | Dhs. 43.06 | Dhs. 1,076.50 |
| 50+ | Dhs. 40.66 | Dhs. 2,033.00 |
| 100+ | Dhs. 35.88 | Dhs. 3,588.00 |
| N+ | Dhs. 7.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

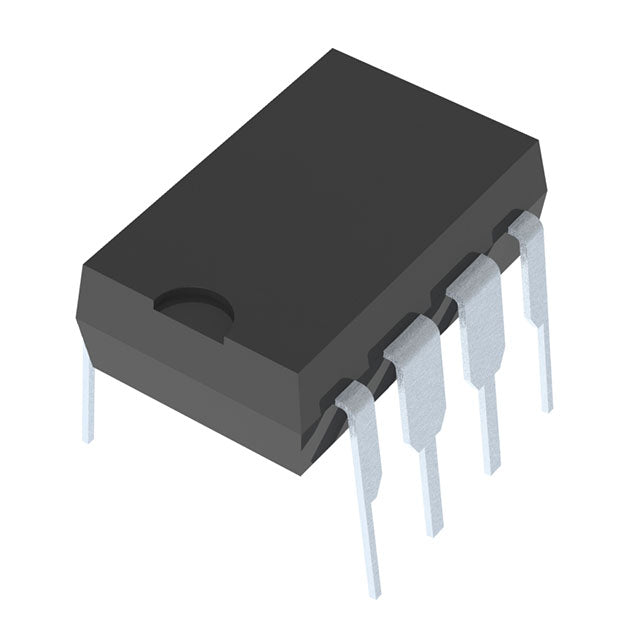

LT1105CN8#PBF - High-Performance Switching Controller IC
The LT1105CN8#PBF from Analog Devices is a versatile isolated switching controller designed for flyback and forward converter topologies. This high-reliability IC delivers up to 100W of power with switching frequencies up to 200kHz, making it ideal for aerospace, industrial, medical, and telecom power supply applications.
Key Features & Benefits
- Wide Input Range: 7V to 30V supply voltage with 16V start-up threshold
- High Efficiency: Up to 200kHz switching frequency for compact transformer design
- Comprehensive Protection: Current limiting, overload, and overvoltage fault protection
- Flexible Topology: Supports both flyback and forward converter configurations
- Robust Design: 63% duty cycle, isolated output for enhanced safety
- Industry Standard Package: 8-DIP through-hole mounting for reliable assembly
Applications
Perfect for offline power supplies, battery chargers, industrial control systems, medical equipment power stages, and telecom infrastructure. The LT1105CN8#PBF provides design engineers with a proven solution for demanding power conversion requirements.
Compliance: RoHS compliant for environmental safety. Full traceability and datasheet available for design-in support.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 30V |
| Duty Cycle | 63% |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
LT1105CN8#PBF.pdf
×
