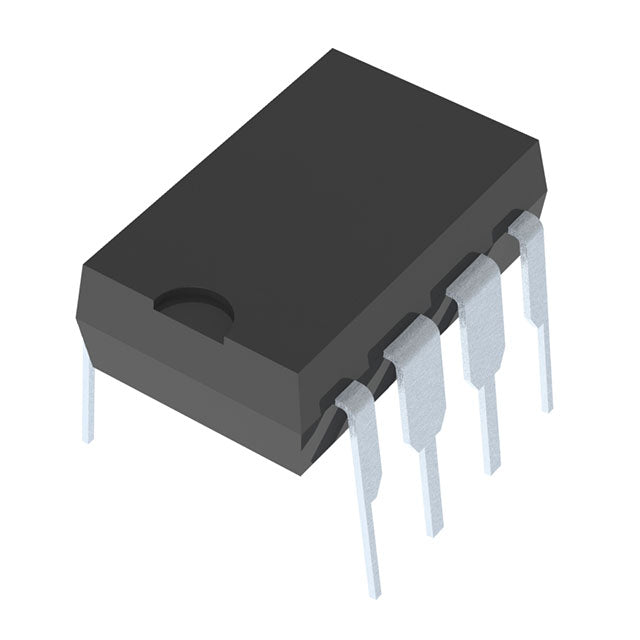

Analog Devices Inc. LT1242IN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 14.12 | Dhs. 14.12 |
| 15+ | Dhs. 13.68 | Dhs. 205.20 |
| 25+ | Dhs. 13.38 | Dhs. 334.50 |
| 50+ | Dhs. 12.64 | Dhs. 632.00 |
| 100+ | Dhs. 11.15 | Dhs. 1,115.00 |
| N+ | Dhs. 2.23 | Price Inquiry |
Request Quote / Inquiry
LT1242IN8#PBF - High-Performance Buck PWM Controller
The LT1242IN8#PBF from Analog Devices is a precision isolated buck topology PWM controller designed for high-efficiency power conversion applications. This versatile controller operates from a 10V to 25V supply with a 16V start-up voltage, delivering exceptional performance with switching frequencies up to 500kHz and an impressive 96% duty cycle capability.
Key Features:
- Isolated output topology for enhanced safety and noise immunity
- Wide input voltage range: 10V to 25V
- High switching frequency capability up to 500kHz for compact designs
- 96% maximum duty cycle for improved efficiency
- Frequency control for flexible application tuning
- Extended operating temperature range: -40°C to 100°C (TJ)
- Industry-standard 8-DIP through-hole package for easy prototyping
- RoHS compliant for environmental compliance
Applications: Ideal for industrial power supplies, telecommunications equipment, automotive electronics, and any application requiring reliable, efficient step-down voltage conversion with galvanic isolation.
Backed by Analog Devices' reputation for quality and reliability, the LT1242IN8#PBF offers designers a proven solution for demanding power management challenges. Available from authorized distributors with full technical support and documentation.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power management solutions. Visit our homepage to browse our full catalog of semiconductor components. Stay updated with the latest industry news and technical insights on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Buck |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 96% |
| Frequency - Switching | Up to 500kHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
LT1242IN8#PBF.pdf
