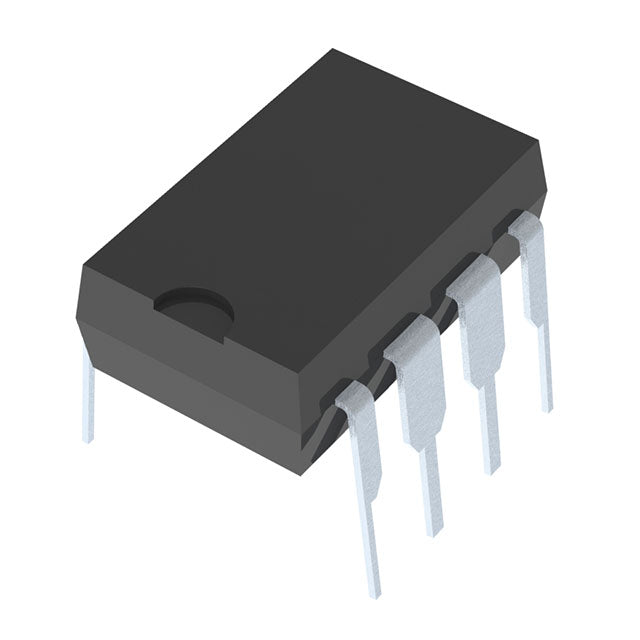

Analog Devices Inc. LT1373CN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.73 | $10.73 |
| 15+ | $10.39 | $155.85 |
| 25+ | $10.16 | $254.00 |
| 50+ | $9.60 | $480.00 |
| 100+ | $8.47 | $847.00 |
| N+ | $1.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost, Cuk, Flyback, Forward Converter, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.245V |
| Voltage - Output (Max) | 35V (Switch) |
| Current - Output | 1.5A (Switch) |
| Frequency - Switching | 250kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
The LT1373CN8#PBF from Analog Devices is a versatile, 250kHz monolithic switching regulator. It can be configured as a buck, boost, Cuk, flyback, forward, or SEPIC converter, offering maximum design flexibility. Operating from a 2.7V to 30V input, it features a 1.5A switch and an adjustable output from 1.245V up to 35V. This makes it an excellent choice for a wide range of applications, from battery-powered portable devices to industrial power supplies requiring multiple topologies.
- Topology Flexibility: Supports buck, boost, Cuk, flyback, forward, and SEPIC configurations, reducing the need for multiple different ICs.
- Wide Input Range: Operates from 2.7V to 30V, accommodating various power sources including batteries and industrial rails.
- High Switching Frequency: The 250kHz frequency allows for smaller external components compared to lower-frequency regulators.
- Robust Switch: The internal 1.5A switch can handle a variety of power levels, making it suitable for many mid-power applications.
Multi-Topology Power Supplies
Its flexibility to be configured as a boost, buck, or SEPIC converter makes it a single solution for various power supply needs in a lab or prototyping environment.
Battery-Powered Systems
With a low 2.7V minimum input, it can boost a single-cell or two-cell battery voltage to a regulated 3.3V or 5V rail for portable instruments.
Isolated Flyback Supplies
Can be used in a flyback topology to create an isolated output for industrial sensors, motor drives, or communication interfaces, providing galvanic isolation.
Negative Output Generation (Cuk)
The Cuk topology allows for generating a negative output voltage from a positive input, useful for op-amp and audio applications.
Automotive Auxiliary Supplies
Its wide input range (up to 30V) makes it suitable for generating auxiliary voltages in automotive systems, such as sensor bias or logic supplies.
High-Voltage Bias Supplies
Can boost a low voltage to a higher voltage (up to 35V) to bias LCD displays, avalanche photodiodes, or other high-voltage components.
- Q: What types of converters can the LT1373CN8#PBF be configured as?
- A: It can be configured as a Buck, Boost, Cuk, Flyback, Forward, or SEPIC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 2.7V to 30V.
- Q: What is the maximum switch current?
- A: The maximum switch current is 1.5A.
- Q: What is the switching frequency?
- A: The switching frequency is fixed at 250kHz.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 1.245V up to 35V (limited by switch rating).
- Q: What package is available?
- A: It is available in an 8-DIP (0.300", 7.62mm) package.
