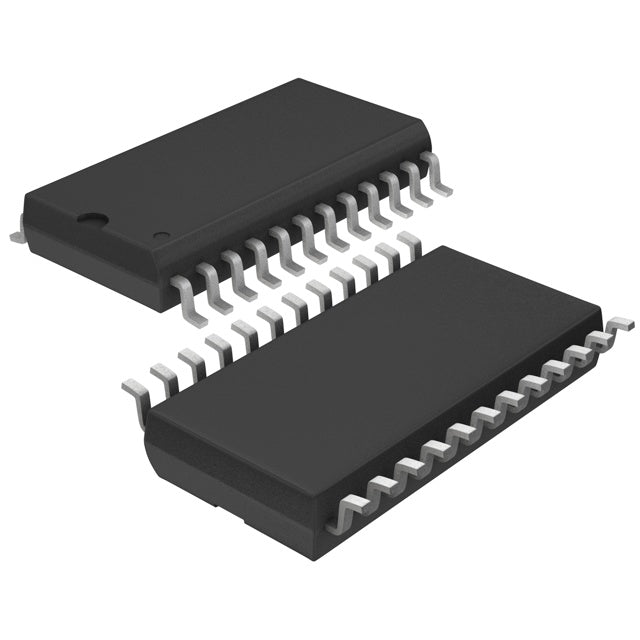

Analog Devices Inc. LT1511CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.31 | $17.31 |
| 15+ | $16.76 | $251.40 |
| 25+ | $16.40 | $410.00 |
| 50+ | $15.49 | $774.50 |
| 100+ | $13.67 | $1,367.00 |
| N+ | $2.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | - |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 20V (Max) |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LT1511CSW#PBF is a versatile multi-chemistry battery charger capable of delivering up to 3A of charge current. It supports a maximum battery pack voltage of 20V, making it suitable for a wide range of consumer and commercial applications. Built-in Over Voltage protection enhances system safety. With an operating temperature range of 0°C to 70°C, it is optimized for indoor and office environments. The charger is housed in a 24-SOIC package, offering a practical solution for various charging circuits.
- Multi-Chemistry Flexibility: Supports various battery chemistries, simplifying charger design for multiple product lines.
- High Output Current: The 3A charge current enables faster charging cycles for larger batteries.
- Integrated Safety: Over Voltage protection helps prevent damage to the battery and system.
- Standard Package: The 24-SOIC package is widely used and easy to integrate into PCB designs.
Desktop Charging Cradles
For consumer electronics like digital cameras and portable audio players, the 3A charge current and 20V max voltage support fast charging in a controlled indoor environment.
Office Docking Stations
Ideal for charging laptops and tablets in an office setting, its 0°C to 70°C range is well-suited for typical indoor ambient temperatures.
Consumer Power Tools
Multi-chemistry support allows it to charge various battery types used in cordless home tools, providing a versatile charging solution.
Portable Medical Monitors
For home-use medical devices, the reliable charging and overvoltage protection ensure safe operation in a commercial temperature environment.
Standalone Battery Chargers
Its wide voltage range up to 20V makes it suitable for universal chargers designed for multiple consumer electronic devices.
- Q: What battery chemistries does the LT1511CSW#PBF support?
- A: It is a Multi-Chemistry charger, suitable for various battery types.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 20V.
- Q: What fault protection does it include?
- A: It includes Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C (TA).
- Q: What package is available?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
