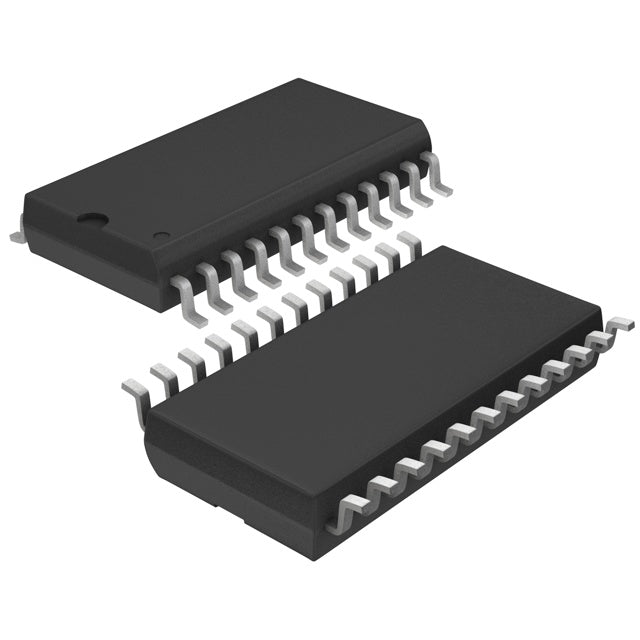

Analog Devices Inc. LT1511ISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.26 | $20.26 |
| 15+ | $19.62 | $294.30 |
| 25+ | $19.20 | $480.00 |
| 50+ | $18.13 | $906.50 |
| 100+ | $16.00 | $1,600.00 |
| N+ | $3.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | - |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 20V (Max) |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LT1511ISW#PBF is a robust multi-chemistry battery charger designed for challenging environments. It provides a 3A charge current and supports battery packs up to 20V. Featuring Over Voltage protection, it ensures safe charging operations. Its wide operating temperature range of -40°C to 85°C makes it an excellent choice for industrial, automotive, and outdoor applications. The charger is offered in a standard 24-SOIC package, providing a reliable and flexible solution for demanding power management systems.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh environments.
- High Voltage Support: Handles battery packs up to 20V, covering a wide range of applications.
- Multi-Chemistry Compatibility: Provides design flexibility for various battery types.
- Safety Protection: Over Voltage protection helps safeguard the battery and circuitry.
Industrial Battery Charging Stations
The -40°C to 85°C operating range makes it perfect for charging stations in factories and warehouses where temperatures are not tightly controlled.
Outdoor Telecom Equipment
For remote radio heads and backup batteries in telecom towers, this charger's wide temperature tolerance and 20V max voltage ensure reliable operation in all climates.
Electric Vehicle Auxiliary Systems
In EVs, it can be used to charge auxiliary 12V-20V battery packs in the harsh under-hood environment, thanks to its extended temperature rating.
Marine and RV Electronics
For boats and recreational vehicles, the multi-chemistry support and robust temperature range make it a dependable choice for charging house batteries.
Military Field Equipment
Its ability to operate in extreme temperatures and charge various chemistries makes it suitable for portable military communication and navigation gear.
- Q: What battery chemistries does the LT1511ISW#PBF support?
- A: It is a Multi-Chemistry charger.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 20V.
- Q: What fault protection does it include?
- A: It includes Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
