Analog Devices Inc. LT1512CN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.94 | $10.94 |
| 15+ | $10.60 | $159.00 |
| 25+ | $10.37 | $259.25 |
| 50+ | $9.79 | $489.50 |
| 100+ | $8.64 | $864.00 |
| N+ | $1.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 1A |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 25V |
| Interface | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |

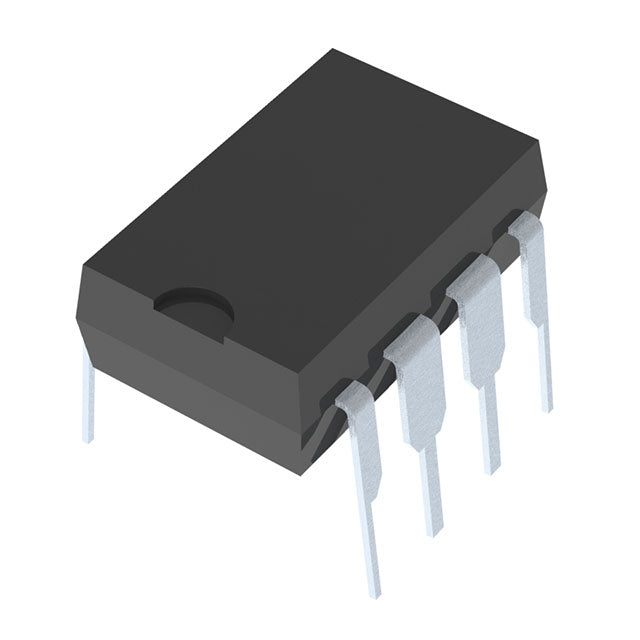

LT1512CN8#PBF Multi-Chemistry Battery Charger IC
The LT1512CN8#PBF from Analog Devices is a versatile single-cell battery charger IC designed for multi-chemistry applications. This programmable constant-current charger delivers up to 1A charging current with a maximum supply voltage of 25V, making it ideal for a wide range of portable and embedded battery-powered systems.
Key Features:
- Multi-Chemistry Support: Compatible with various battery types for flexible design integration
- Programmable Constant Current: Adjustable charging current up to 1A maximum
- Wide Input Range: Operates with supply voltages up to 25V
- Through-Hole Package: 8-DIP (0.300", 7.62mm) for easy prototyping and assembly
- Industrial Temperature Range: Reliable operation from 0°C to 70°C (TA)
- RoHS Compliant: Environmentally friendly manufacturing
Applications:
Perfect for portable electronics, industrial equipment, medical devices, and embedded systems requiring reliable single-cell battery charging solutions.
Technical Specifications:
Why Choose LT1512CN8#PBF?
Analog Devices' LT1512CN8#PBF offers engineers a proven, reliable solution for battery charging applications. The programmable constant-current architecture ensures optimal charging performance while the multi-chemistry compatibility provides design flexibility across different battery technologies.
