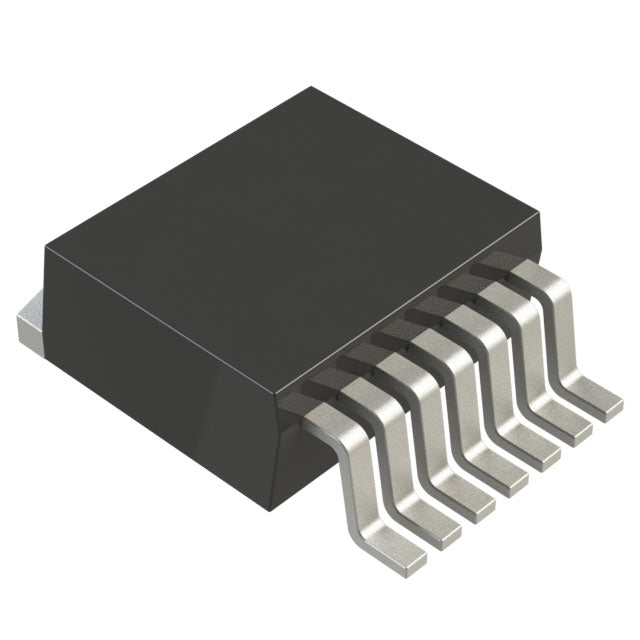

Analog Devices Inc. LT1513CR#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.99 | $12.99 |
| 15+ | $12.58 | $188.70 |
| 25+ | $12.30 | $307.50 |
| 50+ | $11.62 | $581.00 |
| 100+ | $10.25 | $1,025.00 |
| N+ | $2.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | - |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 20V (Max) |
| Voltage - Supply (Max) | 25V |
| Interface | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Supplier Device Package | DDPAK-7 |
| ROHS |  |
The LT1513CR is a versatile multi-chemistry battery charger capable of delivering up to 2A of charge current. It supports battery voltages up to 20V, making it suitable for a variety of battery configurations. Housed in a robust TO-263-8 (D2PAK) package, this charger is designed for applications requiring high power handling and thermal efficiency. It operates over a junction temperature range of 0°C to 125°C.
- Multi-Chemistry Support: Charges various battery types, offering design flexibility.
- High Voltage Capability: Handles battery packs up to 20V, suitable for multi-cell configurations.
- High Power Package: The TO-263-8 (D2PAK) package provides excellent thermal dissipation for high-current applications.
- Reliable Operation: Designed for a wide junction temperature range up to 125°C.
High-Voltage Battery Packs
Charge multi-chemistry battery packs with voltages up to 20V in power tools and portable equipment, using the 2A charge current for efficient energy delivery.
Lead-Acid Replacement
Implement in systems transitioning from lead-acid to Lithium or NiMH batteries, leveraging the multi-chemistry support for flexible design.
Industrial Power Supplies
Use in industrial battery backup systems operating in controlled environments (0°C to 125°C junction), providing reliable charging for various chemistries.
Portable Test Equipment
Power field instruments that require high-voltage battery stacks, benefiting from the D2PAK package's thermal performance for continuous operation.
Automotive Accessories
Charge auxiliary batteries in commercial vehicles, where the robust TO-263 package handles high power dissipation.
- Q: What battery chemistry does the LT1513CR support?
- A: It supports Multi-Chemistry batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the maximum battery voltage?
- A: The maximum battery voltage is 20V.
- Q: What is the operating temperature range?
- A: The operating temperature range is 0°C to 125°C (TJ).
- Q: What is the package type?
- A: It is available in a TO-263-8, D2PAK package.
