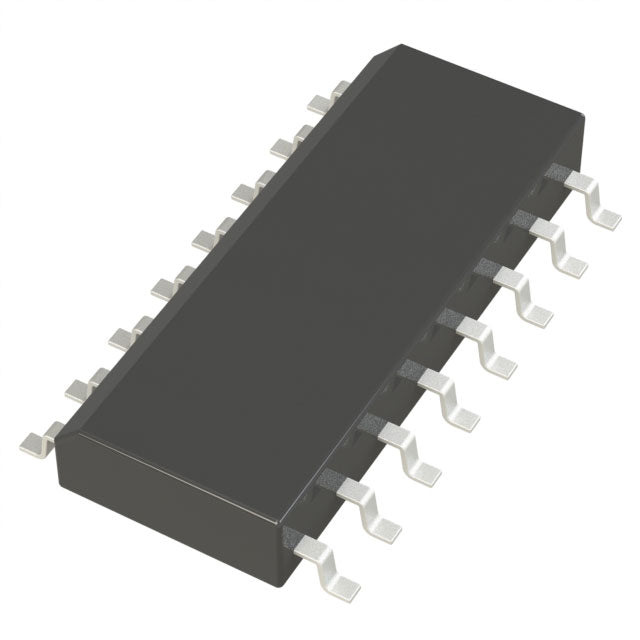

Analog Devices Inc. LT1534CS-1#PBF
Regular price
$12.29
Regular price
$12.94
Sale price
$12.29
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.29 | $12.29 |
| 15+ | $11.90 | $178.50 |
| 25+ | $11.65 | $291.25 |
| 50+ | $11.00 | $550.00 |
| 100+ | $9.71 | $971.00 |
| N+ | $1.94 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Boost, Cuk, Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 35V (Switch) |
| Current - Output | 2A (Switch) |
| Frequency - Switching | 20kHz ~ 250kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
LT1534CS-1#PBF.pdf
×
