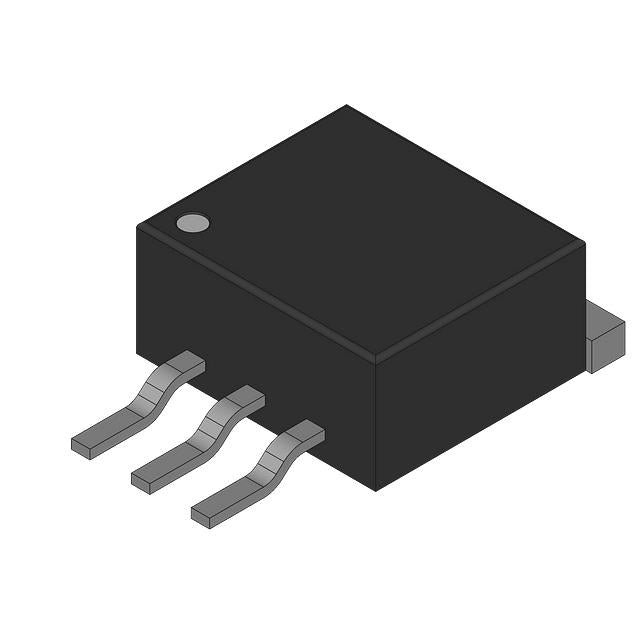

Linear Technology LT1587CM-3.6#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.56 | $34.56 |
| 15+ | $7.95 | $119.25 |
| 25+ | $7.78 | $194.50 |
| 50+ | $7.34 | $367.00 |
| 100+ | $6.48 | $648.00 |
| N+ | $1.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Linear Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 72dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK-3 |
| ROHS |  |
The LT1587CM-3.6#PBF from Linear Technology is a reliable, low dropout linear regulator providing a fixed 3.6V output. It is capable of delivering up to 3A of output current, making it suitable for a variety of power supply applications. With a dropout voltage of 1.3V at full load and excellent ripple rejection of 72dB, this regulator ensures a stable and clean power source for sensitive electronic equipment.
- Stable 3.6V Output: Provides a precise and stable voltage rail for specialized components and legacy systems.
- High Current Capability: 3A output current can power multiple devices or high-current loads.
- Excellent Noise Rejection: 72dB PSRR at 120Hz ensures a clean output, reducing noise in audio and analog circuits.
- Robust Package: The DDPAK-3 package offers good thermal performance for reliable operation.
3.6V Power for Legacy Logic and Peripherals
Provides a stable 3.6V rail for older logic families, sensors, and peripheral devices that require this specific voltage level.
Post-Regulation for Clean Audio Supplies
With 72dB PSRR, it effectively filters switching noise, making it an excellent choice for powering audio codecs and preamplifiers.
Industrial Control and Instrumentation
Its 3A output and robust DDPAK package make it suitable for powering industrial sensors, actuators, and control circuitry.
Communication Interfaces
Ideal for powering RS-232, RS-485, and other communication transceivers that require a stable 3.6V supply.
Battery Charging and Management Circuits
Can be used to provide a regulated 3.6V supply for battery management and monitoring circuits in portable devices.
- Q: What is the output voltage of the LT1587CM-3.6#PBF?
- A: The fixed output voltage is 3.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 3A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for absolute maximum ratings.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.3V at a 3A load.
- Q: What is the PSRR performance?
- A: The power supply rejection ratio is 72dB at 120Hz.
- Q: What is the package type?
- A: It is available in a DDPAK-3 package.
