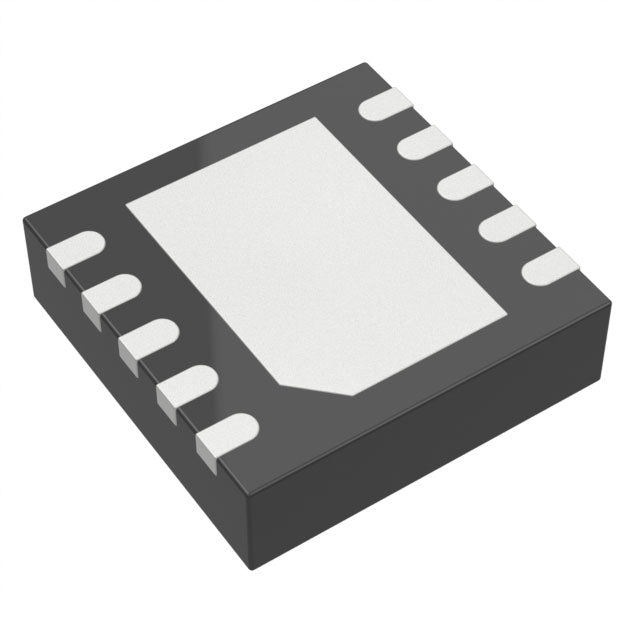

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LT3045EDD#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 16.26 AED | Dhs. 16.26 AED |
| 15+ | Dhs. 15.75 AED | Dhs. 236.25 AED |
| 25+ | Dhs. 15.41 AED | Dhs. 385.25 AED |
| 50+ | Dhs. 14.55 AED | Dhs. 727.50 AED |
| 100+ | Dhs. 12.84 AED | Dhs. 1,284.00 AED |
| N+ | Dhs. 2.57 AED | Price Inquiry |
Couldn't load pickup availability
LT3045EDD#PBF - Ultra-Low Noise Linear Voltage Regulator
The LT3045EDD#PBF from Analog Devices is a precision ultra-low noise linear voltage regulator designed for the most demanding low-noise applications. With an industry-leading output noise of just 0.8µVrms and exceptional PSRR performance of 117dB at 120Hz, this adjustable LDO regulator delivers clean, stable power for precision analog circuits, RF systems, data converters, and noise-sensitive instrumentation.
Key Features & Benefits
- Ultra-Low Output Noise: 0.8µVrms noise floor ensures pristine power for sensitive analog and RF circuits
- Exceptional PSRR: 117dB at 120Hz declining to 53dB at 10MHz for superior line noise rejection
- Wide Output Range: Adjustable from 0V to 15V with 500mA output current capability
- Low Dropout Voltage: Only 0.45V dropout at 500mA for efficient power conversion
- Ultra-Low Quiescent Current: Just 20µA quiescent current minimizes power consumption
- Advanced Control Features: Enable, Power Good, and Soft Start for flexible system integration
- Comprehensive Protection: Over-current, over-temperature, reverse polarity, and UVLO protection
- Wide Operating Temperature: -40°C to 125°C junction temperature range for industrial applications
- Compact Package: 10-DFN (3x3mm) surface mount package with exposed pad for thermal management
Ideal Applications
- Precision analog and mixed-signal circuits requiring ultra-clean power
- RF and wireless communication systems (VCOs, PLLs, synthesizers)
- High-resolution ADCs and DACs power supplies
- Test and measurement instrumentation
- Medical and scientific equipment
- Low-noise sensor interfaces and signal conditioning
- Audio equipment and professional recording systems
Why Choose HQICKEY for Your LT3045EDD#PBF?
At HQICKEY, we guarantee 100% authentic Analog Devices components with full traceability and quality certification. Our technical support team is ready to assist with design-in support, application guidance, and lifecycle management. We offer competitive pricing, reliable global shipping, and dedicated service for OEMs and system integrators worldwide.
Related Resources
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 117dB ~ 53dB (120Hz ~ 10MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
