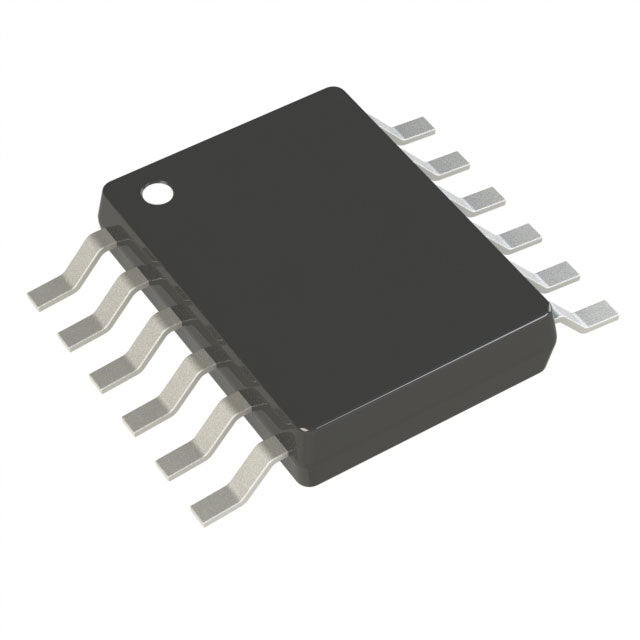

Analog Devices Inc. LT3065HMSE-5#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.70 | $6.70 |
| 15+ | $6.49 | $97.35 |
| 25+ | $6.35 | $158.75 |
| 50+ | $5.99 | $299.50 |
| 100+ | $5.29 | $529.00 |
| N+ | $1.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 110 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| ROHS |  |
The Analog Devices LT3065HMSE-5 is a high-performance 5V LDO regulator designed for noise-sensitive and precision applications. It delivers 500mA of output current with a low dropout voltage of 0.51V at full load. The regulator features an excellent 70dB PSRR at 120Hz, effectively filtering out power supply noise and ripple. With a quiescent current of 110 µA, it balances performance with efficiency. The 12-MSOP-EP package provides a compact footprint with enhanced thermal performance, making it ideal for space-constrained, high-reliability designs.
- Superior Noise Rejection: 70dB PSRR at 120Hz ensures clean power for sensitive audio and RF circuits.
- Low Dropout Voltage: 0.51V at 500mA maximizes efficiency and allows operation from lower input voltages.
- Compact & Thermally Efficient: 12-MSOP-EP package saves board space while providing good heat dissipation.
- High Precision: Fixed 5V output with tight regulation ensures consistent performance.
Precision Instrumentation
The 70dB PSRR at 120Hz and low noise make it ideal for powering precision analog circuits in oscilloscopes and spectrum analyzers.
Automotive Infotainment
Provides a clean 5V supply for audio codecs and display drivers, with high PSRR rejecting alternator whine and other noise.
RF Communication Systems
Regulates 5V for VCOs and PLLs, ensuring low phase noise and stable frequency synthesis in wireless transceivers.
Medical Imaging Equipment
Delivers stable power for sensitive imaging sensors and signal processing chains, ensuring high-quality diagnostic images.
High-End Audio Equipment
Low dropout and high PSRR make it suitable for audiophile-grade DACs and amplifiers, providing a clean and stable power supply.
- Q: What is the output voltage of the LT3065HMSE-5?
- A: This is a fixed 5V output LDO regulator.
- Q: What is the maximum output current?
- A: It can provide up to 500mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.51V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 110 µA.
- Q: What package is available?
- A: It is available in the 12-MSOP-EP package.
