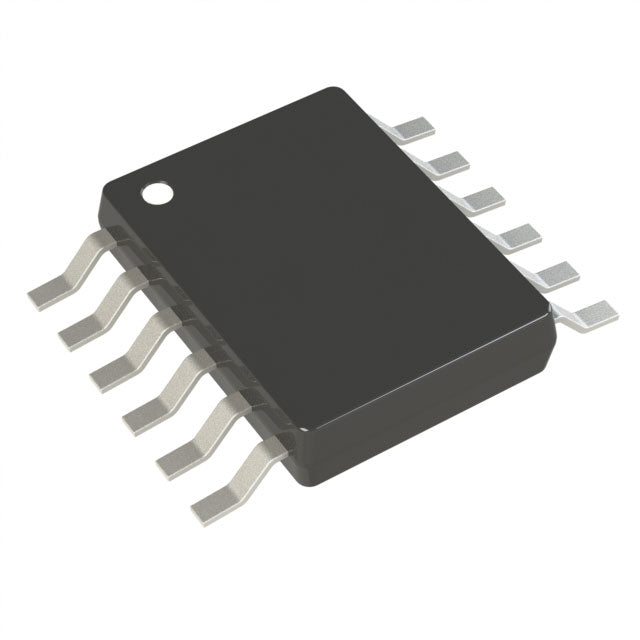

Analog Devices Inc. LT3065IMSE-5#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.27 | $7.27 |
| 15+ | $7.04 | $105.60 |
| 25+ | $6.89 | $172.25 |
| 50+ | $6.50 | $325.00 |
| 100+ | $5.74 | $574.00 |
| N+ | $1.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 110 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| ROHS |  |
The LT3065IMSE-5#PBF is a 500mA low dropout linear regulator from Analog Devices, providing a fixed 5V output. It features a low quiescent current of 110 µA and a PSRR of 70dB at 120Hz, ensuring clean and stable power for a wide range of applications. The compact 12-MSOP-EP package is designed for space-constrained designs requiring efficient thermal management.
- Stable 5V Rail: Fixed 5V output simplifies design for legacy and mixed-signal systems.
- High PSRR: 70dB rejection at 120Hz reduces mains noise, ideal for audio and precision measurement.
- Low Power Consumption: 110 µA quiescent current is perfect for battery-operated devices.
- Thermally Efficient: The MSOP-EP package includes an exposed pad for improved heat dissipation.
5V Logic and Peripheral Supplies
The LT3065IMSE-5 provides a clean 5V rail for legacy logic ICs, microcontrollers, and peripheral interfaces in industrial and consumer electronics.
Sensor Excitation and Signal Conditioning
Use this LDO to power bridge sensors and their signal conditioning circuits, where a stable 5V reference is critical for measurement accuracy.
Audio Equipment Power
With 70dB PSRR, this regulator is well-suited for powering audio codecs and preamplifiers, minimizing hum and noise in audio paths.
Automotive ECUs
Power 5V sensor rails and CAN transceivers in automotive electronic control units, benefiting from the low dropout and robust MSOP-EP package.
Portable Test Instruments
The low 110 µA quiescent current makes it ideal for battery-powered multimeters and oscilloscopes, extending operational life between charges.
- Q: What is the output voltage of the LT3065IMSE-5?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of output current.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.51V at a 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 110 µA.
- Q: What is the PSRR?
- A: The power supply rejection ratio is 70dB at 120Hz.
- Q: What package is available?
- A: It is available in a 12-MSOP-EP package.
