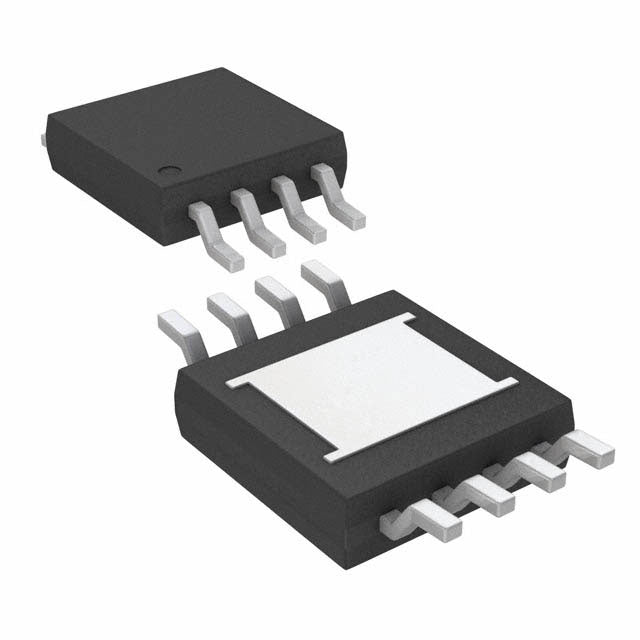

Analog Devices Inc. LT3080EMS8E-1#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.84 | $6.84 |
| 15+ | $6.62 | $99.30 |
| 25+ | $6.48 | $162.00 |
| 50+ | $6.12 | $306.00 |
| 100+ | $5.40 | $540.00 |
| N+ | $1.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 36V |
| Voltage Dropout (Max) | 1.6V @ 1.1A |
| Current - Output | 1.1A |
| Current - Quiescent (Iq) | 500 µA |
| Current - Supply (Max) | 30 mA |
| PSRR | 75db ~ 20dB (120Hz ~ 1MHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| ROHS |  |
The LT3080EMS8E-1 is a versatile adjustable linear regulator from Analog Devices, capable of delivering 1.1A with an output range from 0V to 36V. Its low 500µA quiescent current and high PSRR make it suitable for both battery-powered and noise-sensitive applications. The 8-MSOP-EP package provides a compact solution with good thermal dissipation.
- Wide Adjustability: Output from 0V to 36V provides maximum design flexibility.
- Low Power Loss: 500µA quiescent current enhances efficiency in standby modes.
- Excellent Noise Rejection: PSRR of 75dB at 120Hz and 20dB at 1MHz ensures clean output.
- High Current Capability: 1.1A output supports a wide range of loads.
Adjustable Power Supplies
The 0V to 36V output range allows for a versatile bench power supply, easily set with a single resistor.
Precision Current Sources
With its low 500µA quiescent current and accurate regulation, it can be configured as a stable current source for LED drivers or sensor biasing.
High-Voltage to Low-Voltage Conversion
Its wide input range supports direct conversion from 36V rails down to low voltages, simplifying power architecture in industrial systems.
Noise-Sensitive Audio Circuits
PSRR of 75dB at 120Hz and 20dB at 1MHz ensures clean power for audio amplifiers, reducing hum and interference.
Battery Charging Circuits
The adjustable output and current limiting make it suitable for precision battery charging applications.
Laboratory Test Equipment
Its accuracy and low noise make it ideal for powering sensitive measurement instruments.
- Q: What is the output voltage range?
- A: The output is adjustable from 0V to 36V, set by an external resistor.
- Q: What is the maximum output current?
- A: It can provide up to 1.1A of output current.
- Q: What is the input voltage range?
- A: The input voltage can range from 0V to 36V.
- Q: What is the dropout voltage?
- A: Dropout is typically 1.6V at a 1.1A load.
- Q: What is the quiescent current?
- A: Quiescent current is typically 500µA.
- Q: What package is available?
- A: It is available in an 8-lead MSOP with exposed pad (8-MSOP-EP).
