Analog Devices Inc. LT3080EMS8E#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.84 | $6.84 |
| 15+ | $6.62 | $99.30 |
| 25+ | $6.48 | $162.00 |
| 50+ | $6.12 | $306.00 |
| 100+ | $5.40 | $540.00 |
| N+ | $1.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 36V |
| Voltage Dropout (Max) | 1.6V @ 1.1A |
| Current - Output | 1.1A |
| Current - Quiescent (Iq) | 500 µA |
| Current - Supply (Max) | 30 mA |
| PSRR | 75db ~ 20dB (120Hz ~ 1MHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

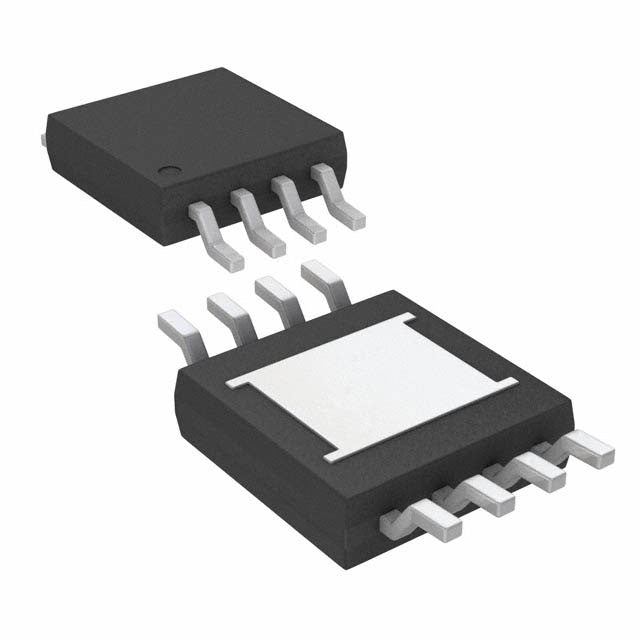

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| ROHS |  |
The LT3080EMS8E#PBF is a versatile 1.1A low dropout linear regulator from Analog Devices, offering an adjustable output from 0V to 36V. Its unique architecture allows for true zero-volt output, making it ideal for a wide range of applications. With a low dropout of 1.6V at full load and a quiescent current of just 500µA, it balances efficiency with performance. The 8-MSOP-EP package provides excellent thermal characteristics, while its high PSRR ensures clean power delivery for sensitive electronics.
- True Zero-Volt Output: Adjustable from 0V to 36V, offering unmatched flexibility for various design requirements.
- High Current Capability: Delivers up to 1.1A, suitable for powering a wide range of loads from sensors to processors.
- Low Quiescent Current: 500µA quiescent current enhances battery life in portable applications.
- Excellent Noise Rejection: PSRR of 75dB at 120Hz ensures clean, stable output for analog and RF circuits.
Laboratory Power Supply Design
The LT3080EMS8E#PBF's ability to adjust down to 0V makes it ideal for lab power supplies. Its 1.1A output and low dropout voltage allow for precise, efficient voltage generation for circuit testing and development.
High-Performance Audio Systems
With 75dB PSRR at 120Hz, this LDO provides clean, stable power for audio DACs, op-amps, and preamplifiers, minimizing power supply-induced noise and distortion for high-fidelity sound reproduction.
FPGA and Microcontroller Power
Modern FPGAs and MCUs often require multiple voltage rails. The LT3080EMS8E#PBF can be used to generate core and I/O voltages with high accuracy, ensuring reliable operation of digital logic.
Battery-Powered IoT Devices
The low 500µA quiescent current makes this regulator suitable for IoT sensors and wearables, where power efficiency is critical for extending battery life between charges.
Automotive Sensor Interfaces
In automotive applications, this LDO can regulate power for sensors and interface ICs, providing a stable supply despite battery voltage variations and load-dump transients.
Precision Data Acquisition Systems
For high-resolution ADCs and DACs, the LT3080EMS8E#PBF ensures a low-noise, stable reference voltage, improving measurement accuracy in industrial and scientific instrumentation.
- Q: What is the output voltage range of the LT3080EMS8E#PBF?
- A: The output voltage is adjustable from 0V to 36V.
- Q: What is the maximum output current?
- A: The maximum output current is 1.1A.
- Q: What is the input voltage range?
- A: The input voltage can range from 0V to 36V.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 1.6V at a 1.1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 500µA.
- Q: What package is this available in?
- A: It comes in an 8-MSOP-EP (exposed pad) package.
