Analog Devices Inc. LT3088EM#TRPBF

Skip to product information
1 of 1

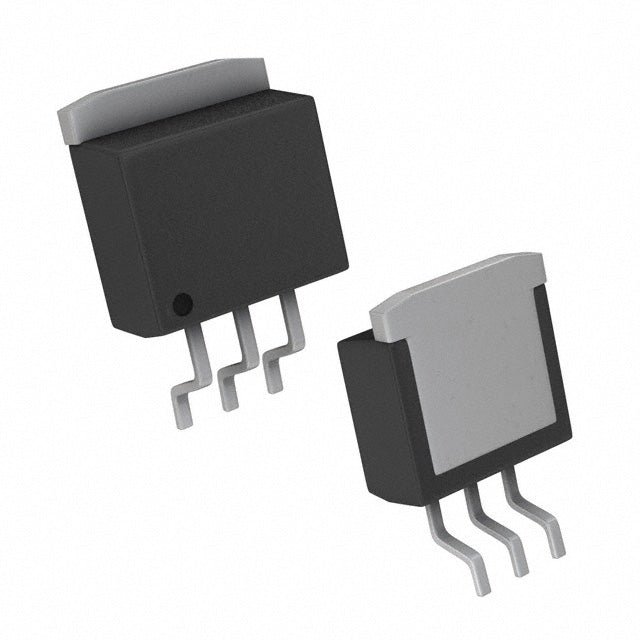

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $13.30
Regular price $3.33 Sale price $13.30
Sale Sold out
Quantity Unit Price Total Price
1 $13.30 $13.30
15+ $3.06 $45.90
25+ $3.00 $75.00
50+ $2.83 $141.50
100+ $2.50 $250.00
N+ $0.50 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tape & Reel (TR) |
Output Configuration Active
Output Type Positive
Number of Regulators Adjustable
Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 0V
Voltage - Output (Max) 34.5V
Voltage Dropout (Max) 1.6V @ 800mA
Current - Output 800mA
Current - Quiescent (Iq) 50.5 μA
Current - Supply (Max) 2 mA
PSRR 90dB ~ 20dB (120Hz ~ 1MHz)
Control Features -
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Supplier Device Package DDPAK-3
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LT3088EM from Analog Devices is a versatile adjustable linear regulator delivering up to 800mA with an output range from 0V to 34.5V. Its low 50.5 μA quiescent current and high PSRR make it an excellent choice for noise-sensitive and battery-powered applications. The DDPAK-3 package ensures efficient heat dissipation for demanding industrial and automotive environments.

  • Wide Output Range (0V to 34.5V): Provides maximum flexibility for various voltage requirements without needing multiple regulator variants.
  • Ultra-Low Quiescent Current (50.5 μA): Significantly extends battery life in portable and always-on applications.
  • High PSRR (90dB at 120Hz): Effectively filters supply noise, ensuring clean power for sensitive analog circuits.
  • Robust 800mA Output: Suitable for powering a wide range of loads, from microcontrollers to small motors.

High-Voltage Industrial Power Supplies

With an output voltage range up to 34.5V and 800mA current capability, the LT3088EM is ideal for powering industrial sensors, actuators, and transceivers that require a stable, high-voltage rail.

Battery-Powered Instrumentation

The ultra-low quiescent current of 50.5 μA extends battery life in portable medical devices, handheld meters, and remote monitoring equipment where power efficiency is critical.

Precision Analog Circuits

Excellent PSRR of 90dB at 120Hz ensures clean, ripple-free power for precision op-amps, ADCs, and DACs, minimizing noise-induced errors in measurement systems.

Post-Regulation for Switching Converters

Use the LT3088EM after a DC-DC converter to reduce output ripple and provide a low-noise, accurate voltage rail for sensitive mixed-signal loads.

Adjustable Lab Power Supplies

The ability to set the output from 0V makes it perfect for benchtop power supplies and test equipment where a variable, precise voltage source is required.

Automotive and Avionics Systems

The wide input range and robust DDPAK-3 package handle voltage transients in 12V and 24V vehicle electrical systems, powering ECUs and infotainment modules reliably.

Q: What is the output voltage range of the LT3088EM?
A: The LT3088EM is an adjustable LDO with an output voltage range from 0V up to 34.5V.
Q: What is the maximum output current?
A: It can deliver up to 800mA of continuous output current.
Q: What is the input voltage range?
A: The input voltage can range from 0V to 34.5V, allowing for versatile applications.
Q: What is the dropout voltage?
A: The dropout voltage is typically 1.6V at a full load of 800mA.
Q: What is the quiescent current?
A: The quiescent current is very low at 50.5 μA, making it suitable for battery-powered devices.
Q: What package is available?
A: The LT3088EM is offered in a DDPAK-3 package.
Base Product Number : LT3088EM
34.5V 800mA Adjustable Analog Devices DDPAK-3 High PSRR LDO Linear Regulator Low Quiescent Current
