Analog Devices Inc. LT3088EST#TRPBF

Skip to product information
1 of 1

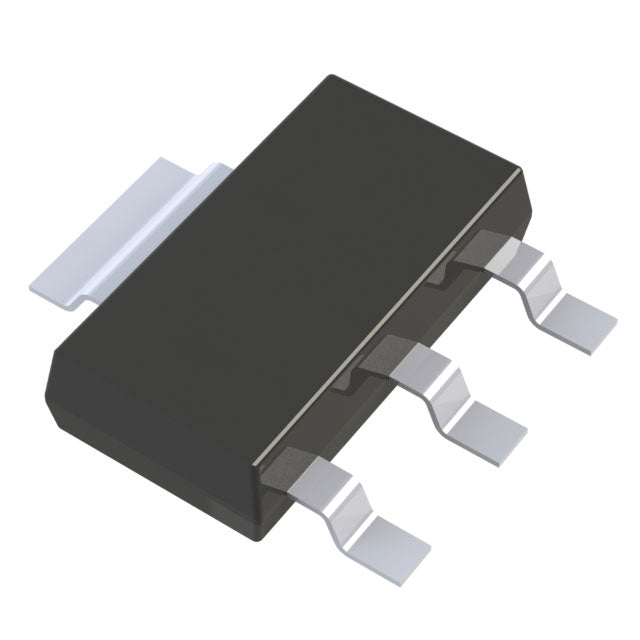

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $6.87
Regular price $7.23 Sale price $6.87
Sale Sold out
Quantity Unit Price Total Price
1 $6.87 $6.87
15+ $6.65 $99.75
25+ $6.51 $162.75
50+ $6.15 $307.50
100+ $5.42 $542.00
N+ $1.08 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 0V
Voltage - Output (Max) 34.5V
Voltage Dropout (Max) 1.6V @ 800mA
Current - Output 800mA
Current - Quiescent (Iq) 50.5 µA
Current - Supply (Max) 2 mA
PSRR 90dB ~ 20dB (120Hz ~ 1MHz)
Control Features -
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-3
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LT3088EST#TRPBF is a versatile, 800mA low dropout linear regulator from Analog Devices, offering an adjustable output from 0V to 34.5V. It features an ultra-low quiescent current of 50.5µA and exceptional ripple rejection, with PSRR ranging from 90dB at 120Hz to 20dB at 1MHz. This makes it an outstanding choice for noise-sensitive and battery-powered applications. The SOT-223-3 package provides a compact, thermally efficient solution.

  • Adjustable to 0V: Unique capability allows for true zero-volt output, ideal for bench supplies.
  • Ultra-Low Quiescent Current: 50.5µA IQ significantly extends battery life in portable devices.
  • Superior Noise Performance: 90dB PSRR at 120Hz ensures a clean output for high-fidelity audio and RF.
  • Wide Voltage Range: Supports input and output voltages up to 34.5V for high-voltage applications.

Adjustable Bench Power Supplies

With its ability to adjust down to 0V and up to 34.5V, the LT3088EST#TRPBF is perfect for building a versatile, low-noise bench power supply.

Noise-Sensitive RF and Audio Circuits

Its exceptional PSRR (90dB at 120Hz) makes it ideal for powering VCOs, PLLs, and high-end audio DACs where supply noise directly impacts performance.

Battery-Powered Instrumentation

The ultra-low 50.5µA quiescent current is critical for extending the operational life of battery-powered sensors and data loggers.

Post-Regulation for High-Voltage Rails

It can efficiently regulate a 34.5V rail from a higher source, providing a clean, stable supply for industrial control systems.

Precision Current Source

Its architecture allows it to be easily configured as a precision current source for driving LEDs or charging capacitors in timing circuits.

Q: What is the output voltage of the LT3088EST#TRPBF?
A: The output voltage is adjustable from 0V up to 34.5V.
Q: What is the maximum output current?
A: It can provide a maximum output current of 800mA.
Q: What is the input voltage range?
A: The input voltage can range from 0V up to 34.5V.
Q: What is the dropout voltage?
A: The dropout voltage is 1.6V at a full load of 800mA.
Q: What is the quiescent current?
A: The quiescent current is very low at 50.5µA.
Q: What is the package type?
A: It comes in a SOT-223-3 package.
Base Product Number : LT3088EST
800mA Adjustable Analog Devices High PSRR LDO Linear Regulator Low IQ SOT-223-3
