Analog Devices Inc. LT3088HST#PBF

Skip to product information
1 of 1

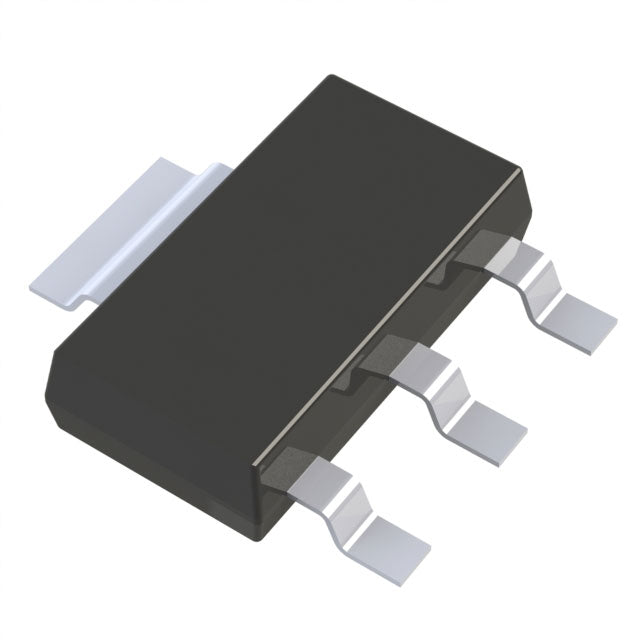

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $8.35
Regular price $8.79 Sale price $8.35
Sale Sold out
Quantity Unit Price Total Price
1 $8.35 $8.35
15+ $8.09 $121.35
25+ $7.91 $197.75
50+ $7.47 $373.50
100+ $6.59 $659.00
N+ $1.32 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 0V
Voltage - Output (Max) 34.5V
Voltage Dropout (Max) 1.6V @ 800mA
Current - Output 800mA
Current - Quiescent (Iq) 50.5 µA
Current - Supply (Max) 2 mA
PSRR 90dB ~ 20dB (120Hz ~ 1MHz)
Control Features -
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature -40°C ~ 150°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-3
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LT3088HST#PBF is a versatile, adjustable linear regulator from Analog Devices, capable of outputting from 0V to 34.5V at up to 800mA. Its ultra-low 50.5µA quiescent current and wide 1.2V to 36V input range make it ideal for battery-powered and industrial applications. With excellent PSRR (90dB at 120Hz) and low noise, it ensures clean power for sensitive analog circuits. The compact SOT-223 package is perfect for space-constrained designs.

  • Adjustable to 0V: Unique capability to set output down to 0V, enabling bipolar supplies and precise biasing.
  • Ultra-Low Quiescent Current: 50.5µA quiescent current significantly extends battery life in portable devices.
  • Wide Input Voltage Range: Operates from 1.2V to 36V, providing flexibility across various power sources.
  • High Ripple Rejection: 90dB PSRR at 120Hz ensures a clean, noise-free output for sensitive analog loads.
  • Compact Package: SOT-223-3 package saves board space in space-limited designs.

Adjustable Power Supply for Op-Amps

The LT3088HST#PBF's ability to adjust down to 0V makes it perfect for creating a bipolar or single-supply rail for precision op-amps. Its low noise and high PSRR (90dB at 120Hz) ensure clean power for high-fidelity audio and instrumentation.

Battery-Powered IoT Devices

With an ultra-low 50.5µA quiescent current, this regulator is ideal for battery-powered sensors and IoT nodes. It maximizes battery life while providing a stable, adjustable voltage for microcontrollers and wireless transceivers.

Portable Test and Measurement Equipment

The wide input voltage range and adjustable output make it suitable for field instruments that need to operate from various battery chemistries. Its low dropout ensures efficient use of battery energy.

Photodiode Bias Supply

The ability to set the output to 0V and the low noise characteristics make it excellent for biasing photodiodes in optical sensing applications. It provides a clean, stable bias voltage for accurate measurements.

Post-Regulation for High-Voltage Rails

Use this LDO to step down and regulate a high-voltage rail (up to 36V) to a lower, cleaner voltage for sensitive analog circuits. Its high PSRR across a wide frequency range (90dB to 20dB) filters out noise effectively.

Automotive Sensor Power

The wide input range and robust design make it suitable for automotive environments, powering sensors and ECUs from the 12V battery bus, even during cold-crank conditions.

Q: What is the output voltage range of the LT3088HST#PBF?
A: The output is adjustable from 0V up to 34.5V, making it extremely versatile for various applications.
Q: What is the maximum output current?
A: It can provide up to 800mA of output current, suitable for medium-power applications.
Q: What is the input voltage range?
A: The input voltage can range from 1.2V up to 36V, allowing operation from a wide variety of supply rails.
Q: What is the dropout voltage?
A: The dropout voltage is a low 1.6V at the maximum 800mA load, ensuring efficient operation.
Q: What is the quiescent current?
A: The quiescent current is an ultra-low 50.5µA, ideal for battery-powered and always-on applications.
Q: What package is available?
A: This LDO is available in a compact SOT-223-3 package, suitable for space-constrained designs.
Base Product Number : LT3088HST
800mA Adjustable Analog Devices LDO Linear Regulator Low Quiescent Current LT3088 SOT-223-3 Wide Input
