Analog Devices Inc. LT3088IST#PBF

Skip to product information
1 of 1

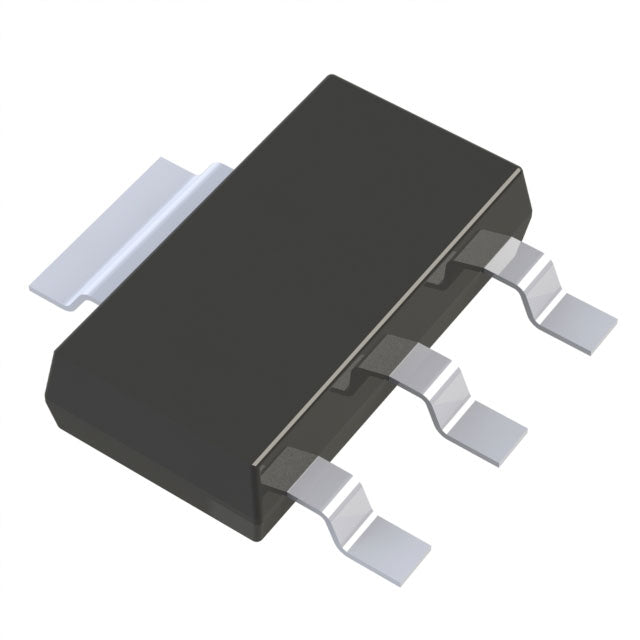

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $7.56
Regular price $7.96 Sale price $7.56
Sale Sold out
Quantity Unit Price Total Price
1 $7.56 $7.56
15+ $7.32 $109.80
25+ $7.16 $179.00
50+ $6.77 $338.50
100+ $5.97 $597.00
N+ $1.19 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 0V
Voltage - Output (Max) 34.5V
Voltage Dropout (Max) 1.6V @ 800mA
Current - Output 800mA
Current - Quiescent (Iq) 50.5 µA
Current - Supply (Max) 2 mA
PSRR 90dB ~ 20dB (120Hz ~ 1MHz)
Control Features -
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-3
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LT3088IST#PBF from Analog Devices is a versatile low dropout linear regulator capable of outputting up to 34.5V with 800mA of current. Its ultra-low 50.5 µA quiescent current makes it an excellent choice for battery-powered high-voltage applications. The 1.6V dropout at full load ensures efficient operation. Packaged in SOT-223-3, this LDO offers a compact solution for industrial, medical, and display applications requiring high-voltage precision.

  • Wide Output Range: Supports up to 34.5V, enabling high-voltage applications with a single LDO.
  • Ultra-Low Quiescent Current: 50.5 µA extends battery life in portable high-voltage devices.
  • High Current with Low Dropout: 800mA output with 1.6V dropout ensures efficient power delivery.
  • Compact SOT-223 Package: Saves board space while providing adequate thermal performance.

High-Voltage Industrial Power Rails

With output capability up to 34.5V, the LT3088IST#PBF is perfect for generating high-voltage rails in industrial automation and test equipment.

Battery-Powered High-Voltage Devices

The 50.5 µA quiescent current makes it suitable for battery-operated devices that need a high-voltage supply, such as portable medical or field instruments.

Programmable Power Supplies

Its wide output range and low dropout allow for flexible, programmable voltage outputs in bench-top and embedded power supply designs.

Photodiode Bias Supplies

The low-noise, high-voltage output is ideal for biasing photodiodes and avalanche photodiodes in optical sensing applications.

Vacuum Fluorescent Displays

Provides a stable high-voltage rail for driving VFDs in consumer and industrial display systems, with low quiescent current for energy efficiency.

Automotive Sensor Interfaces

Supports high-voltage automotive sensor interfaces, ensuring reliable operation across wide supply variations.

Q: What is the output voltage range?
A: The LT3088IST#PBF can output up to 34.5V.
Q: What is the maximum output current?
A: It can deliver up to 800mA of output current.
Q: What is the input voltage range?
A: The input voltage is 0V (minimum).
Q: What is the dropout voltage?
A: The dropout voltage is 1.6V at 800mA load.
Q: What is the quiescent current?
A: The quiescent current is very low at 50.5 µA.
Q: What package is available?
A: It comes in a SOT-223-3 package.
Base Product Number : LT3088IST
34.5V 800mA Analog Devices LDO Linear Regulator Low Quiescent Current LT3088 SOT-223
