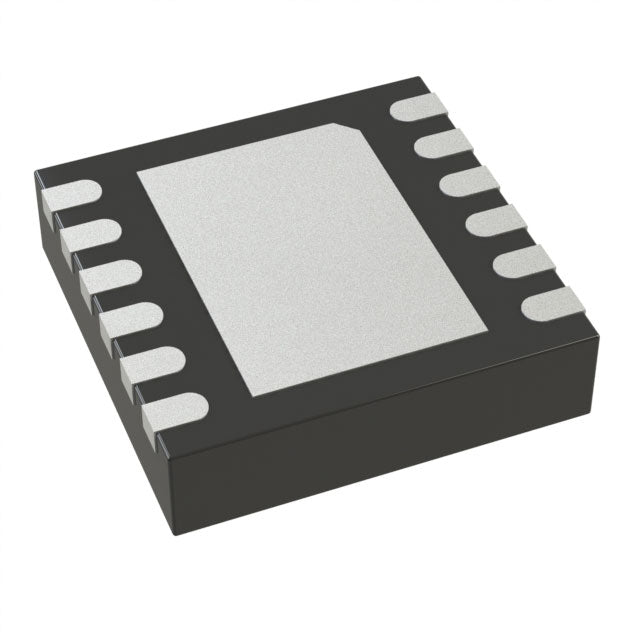

Analog Devices Inc. LT3094IDD#PBF
Regular price
$7.94
Regular price
$8.36
Sale price
$7.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.94 | $7.94 |
| 15+ | $7.69 | $115.35 |
| 25+ | $7.52 | $188.00 |
| 50+ | $7.11 | $355.50 |
| 100+ | $6.27 | $627.00 |
| N+ | $1.25 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -2.3V |
| Voltage - Output (Min/Fixed) | -19.5V |
| Voltage - Output (Max) | 0V |
| Voltage Dropout (Max) | 0.41V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 2.35 mA |
| Current - Supply (Max) | 23 mA |
| PSRR | 108dB ~ 28dB (120Hz ~ 10MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
LT3094IDD#PBF.pdf
×
