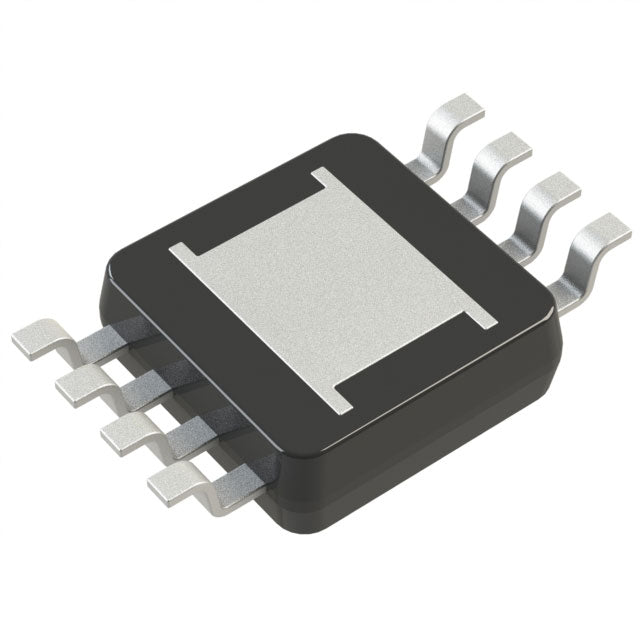

Analog Devices Inc. LT3505IMS8E#PBF
Regular price
$9.55
Regular price
$10.05
Sale price
$9.55
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.55 | $9.55 |
| 15+ | $9.25 | $138.75 |
| 25+ | $9.05 | $226.25 |
| 50+ | $8.54 | $427.00 |
| 100+ | $7.54 | $754.00 |
| N+ | $1.51 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.78V |
| Voltage - Output (Max) | 33.84V |
| Current - Output | 1.2A |
| Frequency - Switching | 200kHz ~ 3.01MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| ROHS |  |
LT3505IMS8E#PBF.pdf
×
