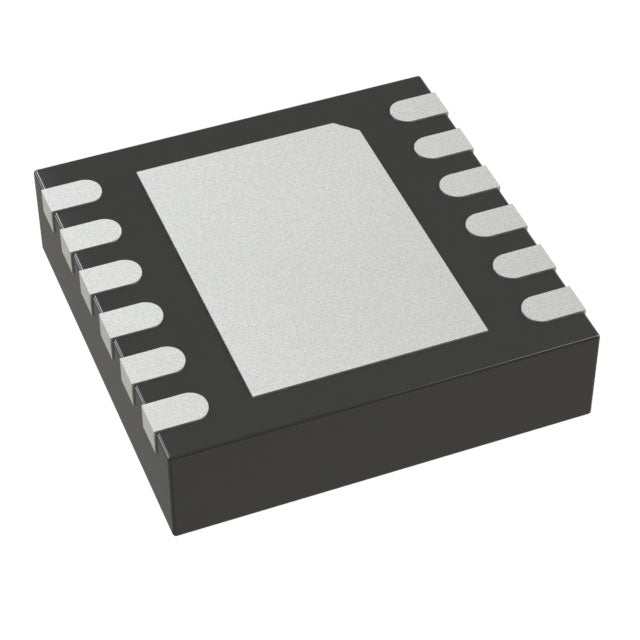

Analog Devices Inc. LT3650IDD-8.2#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.86 | $4.86 |
| 15+ | $4.71 | $70.65 |
| 25+ | $4.61 | $115.25 |
| 50+ | $4.35 | $217.50 |
| 100+ | $3.84 | $384.00 |
| N+ | $0.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 8.2V |
| Voltage - Supply (Max) | 32V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LT3650IDD-8.2#PBF is a complete battery charger IC for 2-cell Lithium Ion/Polymer battery packs. It delivers a programmable charge current up to 2A with a precise 8.2V regulation voltage. The device includes over-temperature protection and operates across a wide -40°C to 85°C temperature range. Housed in a compact 12-WFDFN exposed pad package, it is suitable for portable and industrial equipment requiring reliable multi-cell charging.
- Fast 2A charging capability reduces downtime for 2-cell Li-Ion/Polymer devices.
- Wide -40°C to 85°C operating range enables use in industrial and outdoor applications.
- Integrated over-temperature protection enhances system safety during charging.
- Compact 12-WFDFN package saves board space in space-constrained designs.
Portable Medical Devices
Charge 2-cell Lithium Ion/Polymer packs in portable medical monitors and diagnostic tools. The 2A charge current enables fast turnaround between patient uses, while the wide -40°C to 85°C operating range supports devices used in varied clinical environments.
Industrial Handheld Terminals
Power ruggedized barcode scanners and field data loggers with reliable 8.2V charging. The over-temperature protection safeguards the battery and charger during extended operation in warm factory settings.
Wireless Sensor Networks
Maintain 2-cell Li-Ion/Polymer sensor nodes in remote monitoring installations. The compact 12-WFDFN package fits space-constrained PCB layouts, and the 2A current supports rapid recharging when nodes are brought back to base.
Portable Test & Measurement Equipment
Keep oscilloscopes and multimeters with 2-cell packs ready for field use. The charger's precise 8.2V regulation ensures consistent battery performance and longevity in demanding measurement applications.
Backup Battery Systems
Implement reliable charging for 2-cell Li-Ion/Polymer backup batteries in security and access control systems. The wide temperature range ensures dependable charging from -40°C to 85°C in unconditioned equipment rooms.
- Q: What battery chemistry does the LT3650IDD-8.2#PBF support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 2 series cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery pack voltage?
- A: The battery regulation voltage is 8.2V.
- Q: What fault protection is included?
- A: It includes Over Temperature protection.
- Q: What package is the LT3650IDD-8.2#PBF available in?
- A: It comes in a 12-WFDFN Exposed Pad package.
