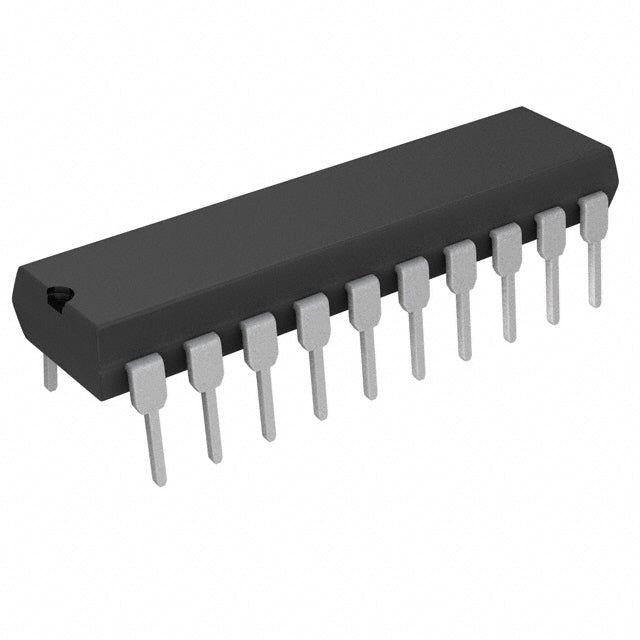

Analog Devices Inc. LTC1090CN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 63.83 | Dhs. 63.83 |
| 15+ | Dhs. 61.82 | Dhs. 927.30 |
| 25+ | Dhs. 60.48 | Dhs. 1,512.00 |
| 50+ | Dhs. 57.12 | Dhs. 2,856.00 |
| 100+ | Dhs. 50.40 | Dhs. 5,040.00 |
| N+ | Dhs. 10.08 | Price Inquiry |
Request Quote / Inquiry
LTC1090CN#PBF - High-Performance 8-Channel Data Acquisition System
The LTC1090CN#PBF from Analog Devices Inc. is a precision 10-bit, 8-channel data acquisition system (DAS) featuring an integrated analog-to-digital converter (ADC). Designed for industrial, instrumentation, and embedded applications requiring multi-channel analog signal conversion, this device delivers reliable performance across extended temperature ranges with full RoHS compliance and long lifecycle support.
Key Features & Benefits
- 8-Channel Multiplexed Input: Monitor up to 8 analog signals with a single IC, reducing board complexity and component count
- 10-Bit Resolution: Achieve precise measurements with 1024 discrete levels for accurate signal representation
- 30kSPS Sampling Rate: Fast conversion speed suitable for dynamic signal monitoring and control applications
- Serial Interface: Simplified digital communication reduces pin count and PCB routing complexity
- Dual ±5V Supply Operation: Flexible power options (±5V, 5V, 10V) for diverse system architectures
- Extended Temperature Range: Operates reliably from -40°C to 85°C for industrial and automotive environments
- Through-Hole 20-DIP Package: Easy prototyping, repair, and legacy system integration
- RoHS Compliant: Meets environmental standards for global market compliance
Typical Applications
- Industrial process control and monitoring systems
- Multi-channel sensor data acquisition
- Instrumentation and test equipment
- Automotive diagnostic and control systems
- Medical device signal processing
- Telecommunications infrastructure
Quality & Compliance
As an authorized distributor, we provide 100% authentic Analog Devices components with full traceability documentation. Every LTC1090CN#PBF ships with manufacturer certification and meets RoHS/REACH environmental compliance standards. Long lifecycle commitment ensures availability for critical designs requiring extended product support.
Documentation & Support
Complete datasheets, application notes, and technical resources are available to support your design-in process. Our technical team can assist with component selection, cross-reference verification, and lifecycle management for aerospace, automotive, industrial, medical, and telecommunications applications.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 10 b |
| Sampling Rate (Per Second) | 30k |
| Data Interface | Serial |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V, 10V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
LTC1090CN#PBF.pdf
