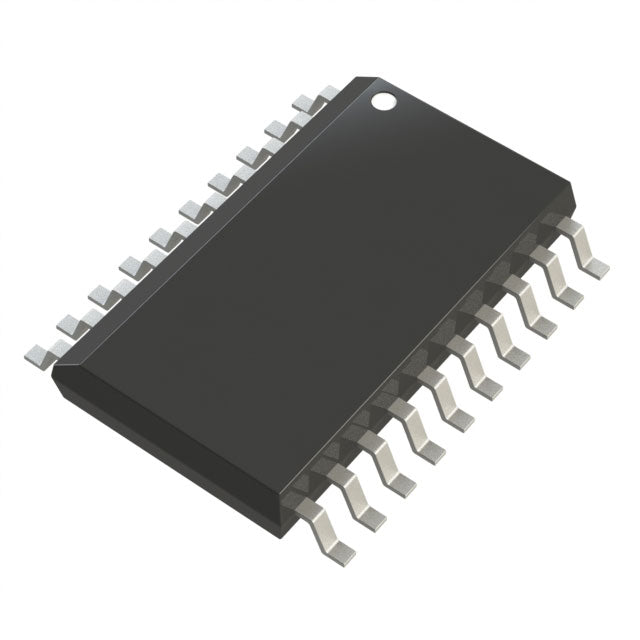

Analog Devices Inc. LTC1090CSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.40 | $28.40 |
| 15+ | $27.50 | $412.50 |
| 25+ | $26.90 | $672.50 |
| 50+ | $25.41 | $1,270.50 |
| 100+ | $22.42 | $2,242.00 |
| N+ | $4.48 | Price Inquiry |
Request Quote / Inquiry
| Product Attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | LTC1090 |
| Packaging | Tube |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 10 b |
| Sampling Rate (Per Second) | 30k |
| Data Interface | Serial |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V, 10V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| RoHS Compliance |  |
LTC1090CSW#PBF - High-Performance 8-Channel Data Acquisition System
The LTC1090CSW#PBF from Analog Devices Inc. is a precision 10-bit, 8-channel data acquisition system (DAS) with integrated analog-to-digital converter (ADC). Designed for industrial, instrumentation, and embedded applications requiring reliable multi-channel analog signal conversion with excellent accuracy and performance.
Key Features & Benefits
- 8-Channel Multiplexed Input: Monitor multiple analog signals with a single ADC
- 10-Bit Resolution: Delivers precise 1024-level digital conversion for accurate measurements
- 30kSPS Sampling Rate: Fast conversion speed suitable for real-time data acquisition
- Serial Interface: Easy integration with microcontrollers and digital systems
- Dual ±5V Supply: Flexible power options for various system architectures
- Wide Operating Temperature: -40°C to 85°C for industrial-grade reliability
- Surface Mount Package: 20-SOIC format for automated assembly and compact PCB designs
- RoHS Compliant: Meets environmental standards for global distribution
Applications
- Industrial process control and monitoring
- Multi-channel sensor data acquisition
- Instrumentation and test equipment
- Embedded systems requiring analog input
- Battery-powered portable measurement devices
Why Choose LTC1090CSW#PBF?
This data acquisition system combines proven Analog Devices quality with versatile functionality, making it ideal for engineers and system designers who need reliable, multi-channel analog-to-digital conversion. The serial interface simplifies integration, while the industrial temperature range ensures dependable operation in demanding environments.
Authorized distributor | Full traceability | RoHS compliant | Technical support available
LTC1090CSW#PBF.pdf
