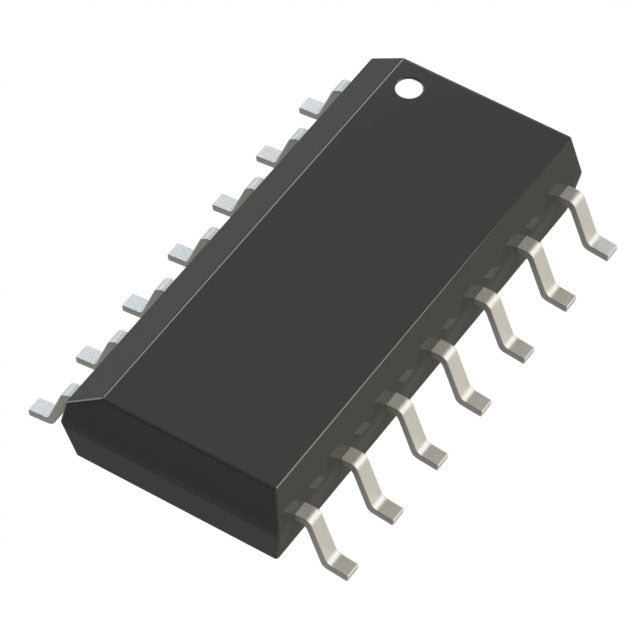

Analog Devices Inc. LTC1265CS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.07 | $12.07 |
| 15+ | $11.68 | $175.20 |
| 25+ | $11.43 | $285.75 |
| 50+ | $10.80 | $540.00 |
| 100+ | $9.53 | $953.00 |
| N+ | $1.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Buck-Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 13V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13V |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | Up to 700kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| ROHS |  |
The LTC1265CS from Analog Devices is a high-performance DC-DC converter IC designed for Buck, Buck-Boost, and SEPIC applications. It operates from a 4V to 13V input, delivering up to 1.2A of switch current with an adjustable output from 1.25V to 13V. With a switching frequency up to 700kHz, it enables compact, efficient power solutions. Ideal for battery-powered devices, industrial controls, and distributed power systems, this converter balances efficiency and versatility in a 14-SOIC package.
- Versatile Topology Support: Buck, Buck-Boost, and SEPIC configurations provide design flexibility for various input/output voltage relationships.
- High-Frequency Operation: Up to 700kHz switching allows for smaller external inductors and capacitors, reducing board space.
- Wide Output Range: Adjustable output from 1.25V to 13V accommodates diverse load requirements.
- Efficient Power Conversion: Optimized for battery-powered applications, extending operational life.
Battery-Powered Portable Devices
With a wide 4V to 13V input range and high efficiency up to 700kHz switching, the LTC1265CS is ideal for extending battery life in handheld instruments and portable electronics.
SEPIC Converters for Regulated Rails
Its SEPIC capability allows for a regulated output voltage even when the input voltage fluctuates above or below the output, making it suitable for automotive and industrial sensor supplies.
Buck-Boost for Multi-Cell Batteries
In systems using multi-cell batteries, the Buck-Boost mode ensures a stable output as the battery voltage discharges, maintaining consistent performance.
Distributed Power Systems
The compact SOIC package and high frequency operation reduce external component size, enabling dense point-of-load designs in networking and computing equipment.
Industrial Control Supplies
The robust 1.2A switch current and wide output range from 1.25V to 13V make it suitable for powering industrial control loops and actuators.
Portable Medical Devices
Low noise and high efficiency operation support sensitive medical monitoring equipment where power integrity is critical.
- Q: What type of converter is the LTC1265CS?
- A: The LTC1265CS is a versatile DC-DC converter supporting Buck, Buck-Boost, and SEPIC topologies.
- Q: What is the input voltage range?
- A: The input voltage range is from 4V to 13V.
- Q: What is the maximum output current?
- A: The maximum switch current is 1.2A.
- Q: What is the switching frequency?
- A: The switching frequency is up to 700kHz.
- Q: What package is available?
- A: It comes in a 14-SOIC package with a width of 3.90mm.
- Q: What is the output voltage range?
- A: The output voltage can be set from 1.25V up to 13V.
