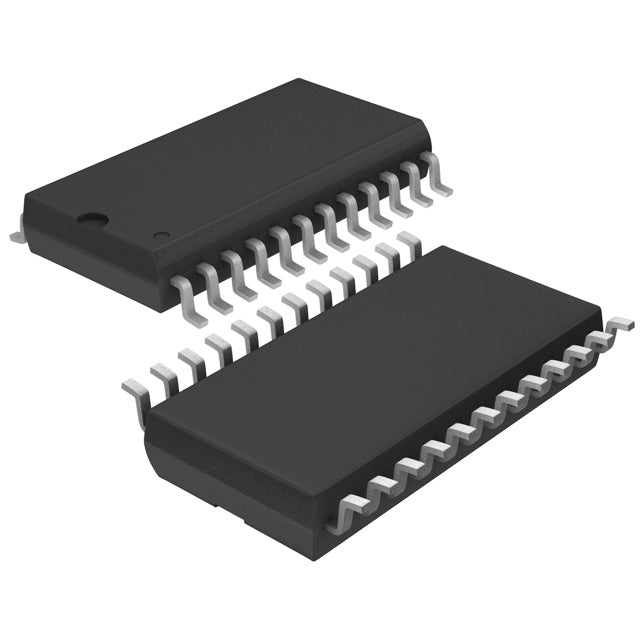

Analog Devices Inc. LTC1272-8ACSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.44 | $30.44 |
| 15+ | $29.48 | $442.20 |
| 25+ | $28.84 | $721.00 |
| 50+ | $27.23 | $1,361.50 |
| 100+ | $24.03 | $2,403.00 |
| N+ | $4.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The Analog Devices LTC1272-8ACSW#PBF is a high-precision 12-bit analog-to-digital converter with a sampling rate of 250 kSPS. Its internal reference simplifies design, while the parallel interface ensures fast data transfer. Housed in a compact 24-SOIC package, this ADC is perfect for industrial control, medical instrumentation, and precision data acquisition systems where accuracy is paramount.
- High Accuracy: 12-bit resolution delivers fine granularity for precise measurements.
- Integrated Reference: The internal reference reduces external component count and simplifies circuit design.
- Compact Footprint: The 24-SOIC package is ideal for space-constrained applications.
- Fast Conversion: 250 kSPS sampling rate supports real-time control and monitoring.
Precision Data Logging
The 12-bit resolution and 250 kSPS sampling rate make the LTC1272-8ACSW#PBF ideal for high-accuracy data loggers used in environmental monitoring or energy metering.
Industrial Process Control
In PLCs and industrial controllers, this ADC converts sensor signals (e.g., 4-20mA loops) with high precision, ensuring accurate process regulation.
Medical Instrumentation
For patient monitoring devices like ECG or blood pressure monitors, the 12-bit resolution provides the necessary detail for reliable vital sign tracking.
Motor Control Systems
The 250 kSPS speed is sufficient for digitizing current feedback in servo drives, enabling smooth and efficient motor operation.
Weighing Scales and Load Cells
With its internal reference, this ADC offers a stable and accurate conversion for industrial weighing systems, ensuring precise weight measurements.
Portable Test Equipment
The SOIC package allows for compact PCB designs, making it suitable for handheld multimeters and portable calibration tools.
- Q: What is the resolution of the LTC1272-8ACSW#PBF?
- A: This ADC offers a 12-bit resolution, providing high accuracy for industrial and instrumentation applications.
- Q: What is the sampling rate?
- A: The LTC1272-8ACSW#PBF has a sampling rate of 250 kSPS (250k samples per second), balancing speed and precision.
- Q: How many input channels are available?
- A: It has a single input channel, designed for dedicated signal conversion.
- Q: What interface does it use?
- A: It features a parallel interface for direct connection to digital buses.
- Q: What is the package type?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) surface-mount package.
- Q: What is the operating temperature range?
- A: The device operates within a commercial temperature range of 0°C to 70°C.
