Analog Devices Inc. LTC1272-8CCN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.96 | $16.96 |
| 15+ | $16.42 | $246.30 |
| 25+ | $16.07 | $401.75 |
| 50+ | $15.17 | $758.50 |
| 100+ | $13.39 | $1,339.00 |
| N+ | $2.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
| ROHS |  |

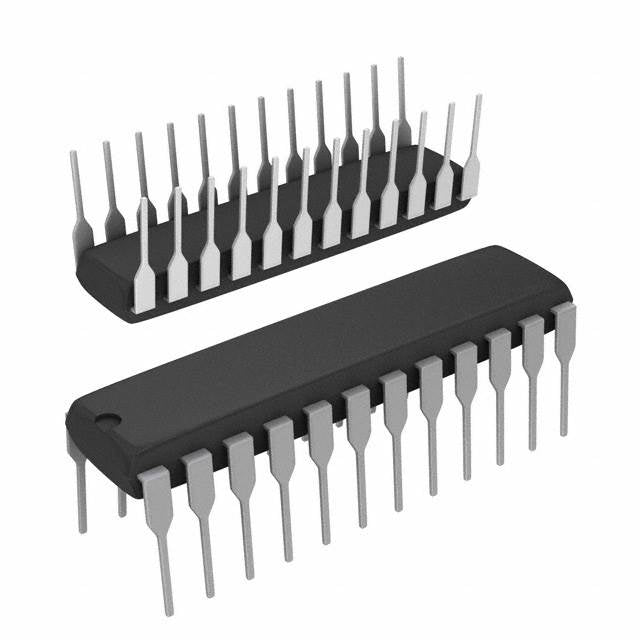

The LTC1272-8CCN#PBF is a 12-bit sampling analog-to-digital converter from Analog Devices, designed for high-performance data acquisition. It features a maximum sampling rate of 250k SPS and a single input channel, making it suitable for a wide range of industrial and instrumentation applications. The device integrates a sample-and-hold circuit and an internal reference, simplifying the design process. Its parallel interface ensures fast and efficient data transfer to microcontrollers or DSPs. Housed in a 24-pin DIP package, this ADC operates over a 0°C to 70°C temperature range, providing reliable performance in commercial environments.
- High-Speed Sampling: 250k SPS enables accurate digitization of fast signals, reducing aliasing in real-time systems.
- Integrated Reference: The internal reference minimizes external components, simplifying PCB layout and reducing BOM cost.
- Parallel Interface: Provides high data throughput with minimal latency, ideal for interfacing with legacy or high-speed digital buses.
- Proven S/H Architecture: Ensures accurate sampling of dynamic signals without external sample-and-hold circuitry.
Industrial Data Acquisition Systems
The 250k SPS sampling rate and 12-bit resolution make it ideal for capturing fast-changing industrial sensor signals with good accuracy.
Precision Instrumentation
With its internal reference and S/H architecture, it ensures stable and repeatable conversions for benchtop multimeters and precision measurement tools.
Motor Control Feedback Loops
The parallel interface allows for low-latency reading of position or current sensors, enabling real-time control in servo and stepper motor applications.
Medical Monitoring Devices
Its 12-bit resolution is sufficient for digitizing biopotential signals like ECG or EMG, while the DIP package is suitable for prototyping and low-volume medical devices.
Automotive Sensor Interfaces
Operating from 0°C to 70°C, it can be used in non-extreme automotive environments for converting throttle position or pressure sensor outputs.
Portable Battery-Powered Devices
The internal reference reduces external component count, saving board space and power in compact, battery-operated data loggers.
- Q: What type of ADC is the LTC1272-8CCN#PBF?
- A: It is a 12-bit successive approximation (S/H-ADC) analog-to-digital converter with an internal reference.
- Q: What is the resolution of this ADC?
- A: The LTC1272-8CCN#PBF provides 12-bit resolution, offering 4096 discrete output levels.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 250k SPS (samples per second), suitable for moderate-speed data acquisition.
- Q: How many input channels does it have?
- A: It features a single (1) analog input channel.
- Q: What interface does it use?
- A: It uses a parallel interface for direct connection to microprocessors or digital systems.
- Q: What package is available?
- A: It comes in a 24-pin DIP package (0.300", 7.62mm width).
