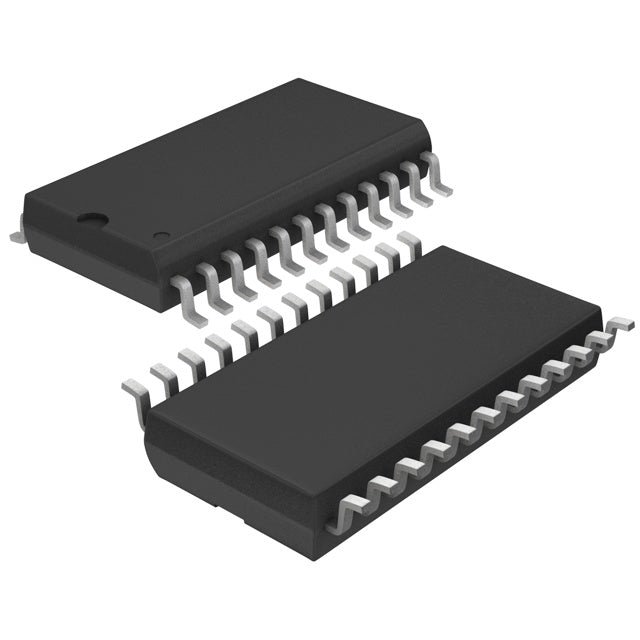

Analog Devices Inc. LTC1273ACSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.07 | $47.07 |
| 15+ | $45.59 | $683.85 |
| 25+ | $44.60 | $1,115.00 |
| 50+ | $42.12 | $2,106.00 |
| 100+ | $37.16 | $3,716.00 |
| N+ | $7.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 300k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1273ACSW#PBF is a reliable 12-bit analog-to-digital converter from Analog Devices, offering a practical balance of speed and precision for a wide range of applications. With a sampling rate of 300 kSPS and a single input channel, it is well-suited for industrial control, data acquisition, and automotive testing. The parallel interface ensures fast and efficient data transfer to microprocessors and DSPs. It features an internal reference, simplifying circuit design. Housed in a 24-SOIC package and operating from 0°C to 70°C, it provides a robust and cost-effective ADC solution.
- Integrated Reference: The internal reference voltage source eliminates the need for external components, simplifying design and reducing BOM cost.
- Fast Parallel Interface: The parallel output allows for high-speed data transfer, making it suitable for real-time control and high-throughput data acquisition.
- Proven Performance: The 12-bit resolution and 300 kSPS sampling rate offer a dependable balance for a wide variety of industrial and embedded applications.
- Wide Availability: The standard 24-SOIC package is widely used and easy to source, ensuring manufacturability.
Industrial Data Logging
The LTC1273ACSW#PBF's 300 kSPS sampling rate and 12-bit resolution are well-suited for data loggers monitoring industrial processes, providing a good balance between speed and accuracy for capturing trends and events.
Motor Control Systems
In variable speed drives and servo controllers, this ADC can digitize current and voltage feedback signals with sufficient speed and resolution for real-time control loops, ensuring smooth and efficient motor operation.
Automotive Test Equipment
For bench testing of automotive sensors and ECUs, the parallel interface allows for high-speed data transfer to analysis systems, while the 12-bit resolution provides adequate detail for troubleshooting and validation.
Battery Management Systems
In BMS for electric vehicles and energy storage, the ADC can monitor cell voltages and temperatures, with the internal reference simplifying the design and the parallel interface enabling fast reads by the BMS controller.
General-Purpose Embedded Systems
As a general-purpose ADC, it can be used in various embedded applications like environmental monitoring or simple audio digitization, where its parallel interface and moderate speed offer a straightforward solution.
- Q: What is the resolution of the LTC1273ACSW#PBF?
- A: This ADC provides 12-bit resolution.
- Q: What is the sampling rate?
- A: It has a sampling rate of 300 kSPS (300,000 samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interface does it support?
- A: It uses a parallel digital output interface.
- Q: What is the architecture of this ADC?
- A: It is based on a S/H-ADC (Sample and Hold) architecture.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C and comes in a 24-SOIC package.
