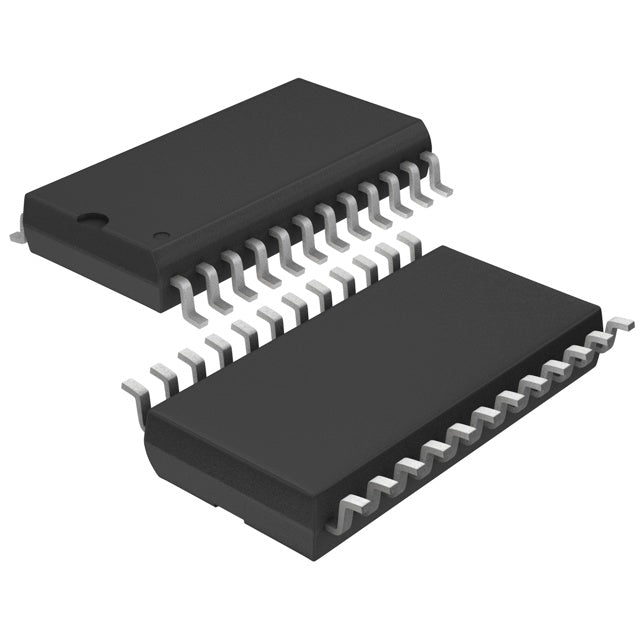

Analog Devices Inc. LTC1278-4ISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $36.94 | $36.94 |
| 15+ | $35.77 | $536.55 |
| 25+ | $34.99 | $874.75 |
| 50+ | $33.05 | $1,652.50 |
| 100+ | $29.16 | $2,916.00 |
| N+ | $5.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LTC1278-4ISW#PBF is a 12-bit, single-channel analog-to-digital converter from Analog Devices, offering a solid balance of performance and simplicity. It samples at 400 kSPS, making it suitable for a wide range of industrial and instrumentation applications. The parallel interface ensures straightforward connection to microprocessors and DSPs. Its S/H-ADC architecture guarantees accurate sampling of analog signals. Housed in a standard 24-SOIC package, it operates over a -40°C to +85°C temperature range, providing reliable performance in demanding environments.
- Proven Reliability: The S/H-ADC architecture ensures accurate and repeatable conversions, critical for industrial control.
- Easy Integration: The parallel interface simplifies connection to legacy and modern digital systems.
- Wide Operating Range: -40°C to +85°C operation makes it suitable for outdoor and industrial environments.
- Standard Package: The 24-SOIC package is widely used and easy to manufacture with.
Industrial Data Logging
The LTC1278-4ISW#PBF's 12-bit resolution and 400 kSPS sampling rate make it ideal for industrial data loggers that need to capture sensor data with good accuracy and speed.
Battery-Powered Instruments
Its low power consumption and single-channel design are well-suited for portable, battery-powered measurement instruments like multimeters and data loggers.
Process Control Loops
In industrial process control, this ADC provides reliable digitization of 4-20 mA loop signals, enabling precise monitoring and control of temperature, pressure, and flow.
Medical Patient Monitoring
The 12-bit resolution is sufficient for vital sign monitoring applications such as ECG and temperature sensing, where accuracy and low noise are important.
Automotive Sensor Interface
With a -40°C to 85°C temperature range, it can be used in automotive sensor interfaces for engine control and battery monitoring systems.
- Q: What is the resolution of the LTC1278-4ISW#PBF?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 400 kSPS (kilo samples per second).
- Q: How many channels does it have?
- A: This ADC has a single input channel.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture?
- A: It uses a S/H-ADC (sample and hold) architecture.
- Q: What is the package type?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
