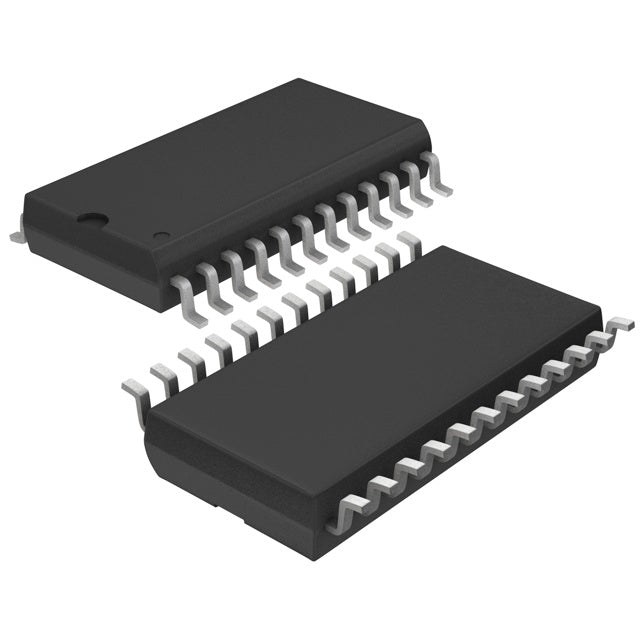

Analog Devices Inc. LTC1282ACSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.83 | $31.83 |
| 15+ | $30.82 | $462.30 |
| 25+ | $30.15 | $753.75 |
| 50+ | $28.48 | $1,424.00 |
| 100+ | $25.13 | $2,513.00 |
| N+ | $5.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 140k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, ±3V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The Analog Devices LTC1282ACSW#PBF is a 12-bit analog-to-digital converter designed for low-power, high-accuracy applications. With a sampling rate of 140 kSPS and a parallel interface, it offers a balanced solution for various data acquisition needs. Its internal reference and compact SOIC-24 package make it an excellent choice for portable medical devices, environmental sensors, and industrial monitoring systems.
- Low Power Operation: Ideal for battery-powered and portable devices, extending operational life.
- High Precision: 12-bit resolution ensures accurate signal conversion for critical measurements.
- Internal Reference: Reduces external components, saving board space and cost.
- Proven Reliability: Analog Devices' S/H-ADC architecture guarantees consistent performance.
Low-Power Sensor Interfaces
The LTC1282ACSW#PBF is ideal for battery-powered sensors in IoT devices, where its 140 kSPS speed and 12-bit accuracy provide excellent performance without draining power.
Portable Medical Devices
In wearable health monitors, this ADC's low power consumption and precision make it suitable for digitizing bio-signals like ECG and EEG.
Data Acquisition for Environmental Monitoring
For weather stations or pollution monitors, the 12-bit resolution ensures accurate conversion of temperature, humidity, and gas sensor outputs.
Industrial Weighing Systems
The internal reference and high resolution make this ADC perfect for load cell interfaces, providing stable and repeatable weight measurements.
Precision Voltage Monitoring
In server and telecom equipment, this ADC can monitor supply voltages with high accuracy, ensuring system reliability and detecting power anomalies.
Battery Management Systems
For lithium-ion battery packs, the LTC1282ACSW#PBF can accurately measure cell voltages, enabling precise state-of-charge estimation.
- Q: What is the resolution of the LTC1282ACSW#PBF?
- A: This ADC provides a 12-bit resolution, ensuring high-precision digital representation of analog signals.
- Q: What is the sampling rate?
- A: The LTC1282ACSW#PBF operates at a sampling rate of 140 kSPS (140k samples per second), optimized for low-power, high-accuracy applications.
- Q: How many channels does it have?
- A: It features a single input channel for converting one analog signal.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for straightforward integration with microcontrollers and DSPs.
- Q: What is the package type?
- A: It comes in a 24-SOIC (0.295", 7.50mm Width) surface-mount package.
- Q: What is the operating temperature range?
- A: The device is rated for a commercial temperature range of 0°C to 70°C.
