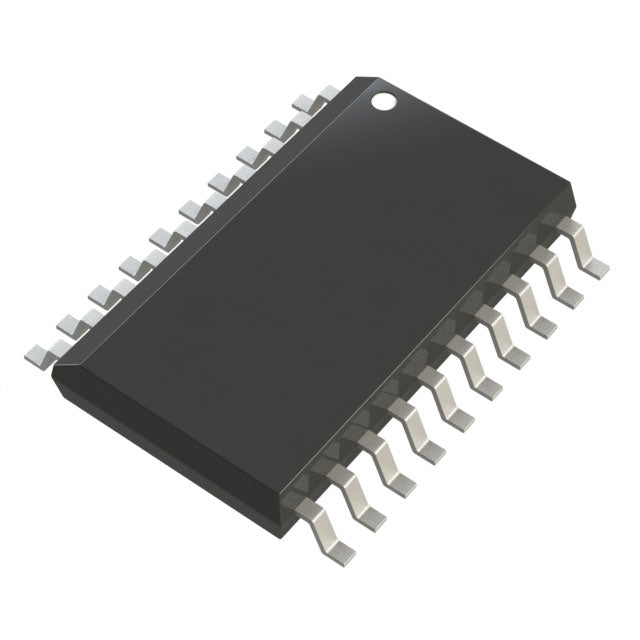

Analog Devices Inc. LTC1290CCSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.13 | $47.13 |
| 15+ | $45.64 | $684.60 |
| 25+ | $44.65 | $1,116.25 |
| 50+ | $42.17 | $2,108.50 |
| 100+ | $37.21 | $3,721.00 |
| N+ | $7.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
The LTC1290CCSW#PBF from Analog Devices is a versatile 12-bit analog-to-digital converter (ADC) with a built-in multiplexer supporting 4 or 8 input channels. It features a sampling rate of 50k SPS and communicates via a standard SPI interface, making it easy to integrate with digital systems. The MUX-S/H-ADC architecture allows for efficient multi-channel data acquisition. This ADC operates within a temperature range of 0°C to 70°C and comes in a 20-SOIC package. It is an excellent choice for multi-sensor data acquisition, industrial automation, and portable instrumentation.
- Multi-Channel Flexibility: The integrated 4/8-channel MUX allows one ADC to handle multiple analog inputs, saving board space and cost.
- Simple Digital Interface: The SPI interface ensures easy communication with microcontrollers and digital signal processors.
- Low Power Consumption: Designed for efficiency, making it suitable for battery-powered and portable devices.
- Compact Package: The 20-SOIC package is space-saving, ideal for dense PCB layouts.
Multi-Channel Data Logging
The LTC1290CCSW#PBF's 4/8 channel multiplexer allows a single ADC to monitor multiple sensors, making it perfect for data loggers in environmental monitoring or industrial process control.
Battery-Powered Instruments
With a moderate 50k SPS sampling rate and SPI interface, this ADC is well-suited for portable, battery-powered instruments where low power consumption and small footprint are critical.
Industrial Automation
In factory automation, the LTC1290CCSW#PBF can digitize signals from multiple analog sensors (temperature, pressure, flow) via its SPI interface, enabling centralized control and monitoring.
Medical Patient Monitoring
The multi-channel capability is ideal for patient monitoring systems that track several vital signs simultaneously, such as ECG, temperature, and blood pressure.
Automotive Sensor Interfaces
In automotive test systems, this ADC can interface with multiple sensors to measure parameters like voltage, current, and temperature, providing accurate data for diagnostics.
Precision Measurement Systems
The 12-bit resolution and external reference support make it suitable for precision measurement applications like weigh scales and strain gauge readers.
- Q: What is the resolution of the LTC1290CCSW#PBF?
- A: The LTC1290CCSW#PBF is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the LTC1290CCSW#PBF?
- A: It has a sampling rate of 50k SPS (50,000 samples per second).
- Q: How many input channels does the LTC1290CCSW#PBF have?
- A: It supports 4 or 8 input channels, configurable via the multiplexer.
- Q: What interface does the LTC1290CCSW#PBF use?
- A: It uses an SPI serial interface for communication.
- Q: What is the architecture of the LTC1290CCSW#PBF?
- A: It uses a MUX-S/H-ADC architecture with an integrated multiplexer.
- Q: What is the package type for the LTC1290CCSW#PBF?
- A: It is available in a 20-SOIC (0.295", 7.50mm Width) package.
