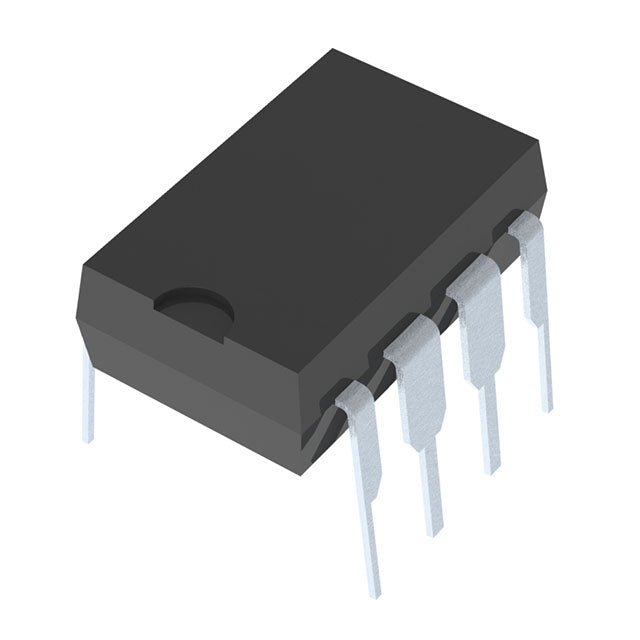

Analog Devices Inc. LTC1291BCN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 167.90 | Dhs. 167.90 |
| 15+ | Dhs. 162.60 | Dhs. 2,439.00 |
| 25+ | Dhs. 159.07 | Dhs. 3,976.75 |
| 50+ | Dhs. 150.23 | Dhs. 7,511.50 |
| 100+ | Dhs. 132.56 | Dhs. 13,256.00 |
| N+ | Dhs. 26.51 | Price Inquiry |
Request Quote / Inquiry
LTC1291BCN8#PBF - 12-Bit Data Acquisition System IC
The LTC1291BCN8#PBF from Analog Devices is a high-precision 12-bit, 2-channel data acquisition system (DAS) designed for reliable analog-to-digital conversion in industrial, instrumentation, and embedded applications. This versatile IC features both serial and parallel data interfaces, making it ideal for microcontroller-based designs requiring accurate signal measurement and processing.
Key Features & Benefits
- 12-bit resolution ensures precise analog signal conversion with excellent accuracy
- Dual-channel architecture allows simultaneous monitoring of two independent analog inputs
- Flexible data interface supports both serial and parallel communication protocols
- Single 5V supply operation simplifies power design and reduces system complexity
- Wide operating temperature range (0°C to 70°C) suitable for commercial and industrial environments
- Through-hole 8-DIP package facilitates easy prototyping, testing, and reliable PCB assembly
- RoHS compliant meets environmental standards for lead-free manufacturing
Applications
This data acquisition IC is commonly used in process control systems, sensor interface circuits, industrial automation equipment, test and measurement instruments, and embedded data logging applications where reliable analog signal conversion is critical.
Quality & Traceability
All Analog Devices components are sourced from authorized distributors and come with full manufacturer traceability documentation. Each unit is backed by Analog Devices' quality assurance and long lifecycle support commitment, ensuring reliable supply for production and maintenance requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | - |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
LTC1291BCN8#PBF.pdf
