Analog Devices Inc. LTC1292DCN8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 90.80 | Dhs. 90.80 |
| 15+ | Dhs. 87.95 | Dhs. 1,319.25 |
| 25+ | Dhs. 86.04 | Dhs. 2,151.00 |
| 50+ | Dhs. 81.26 | Dhs. 4,063.00 |
| 100+ | Dhs. 71.70 | Dhs. 7,170.00 |
| N+ | Dhs. 14.34 | Price Inquiry |
Request Quote / Inquiry

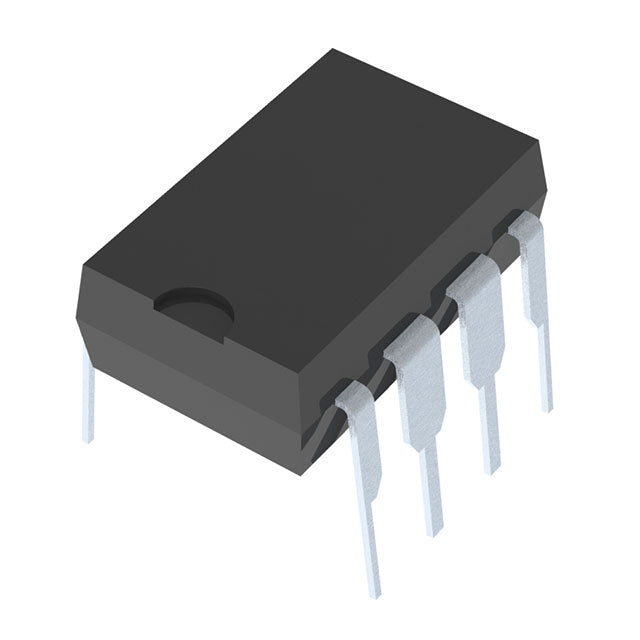

LTC1292DCN8#PBF - 12-Bit Dual-Channel Data Acquisition System
The LTC1292DCN8#PBF from Analog Devices is a high-performance 12-bit data acquisition system (DAS) featuring dual-channel sampling at 60kSPS. Designed for precision measurement applications, this IC operates from a single 5V supply and offers both serial and parallel data interfaces for flexible system integration.
Key Features
- 12-bit resolution for accurate analog-to-digital conversion
- 2-channel simultaneous sampling capability
- 60kSPS sampling rate for real-time data acquisition
- Single 5V supply operation simplifies power design
- Serial and parallel data interfaces for versatile connectivity
- 8-DIP through-hole package for reliable PCB mounting
- 0°C to 70°C operating temperature range
- RoHS compliant for environmental compliance
Applications
Ideal for industrial control systems, medical instrumentation, automotive diagnostics, test and measurement equipment, and embedded data logging applications requiring precision analog signal acquisition.
Quality & Compliance
As an authorized distributor, we provide 100% traceable components with full manufacturer documentation. All units are RoHS/REACH compliant and backed by Analog Devices' long lifecycle commitment, ensuring reliable supply for critical designs.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 60k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
LTC1292DCN8#PBF.pdf
