Analog Devices Inc. LTC1293BCSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 156.05 | Dhs. 156.05 |
| 15+ | Dhs. 151.11 | Dhs. 2,266.65 |
| 25+ | Dhs. 147.83 | Dhs. 3,695.75 |
| 50+ | Dhs. 139.61 | Dhs. 6,980.50 |
| 100+ | Dhs. 123.19 | Dhs. 12,319.00 |
| N+ | Dhs. 24.64 | Price Inquiry |
Request Quote / Inquiry

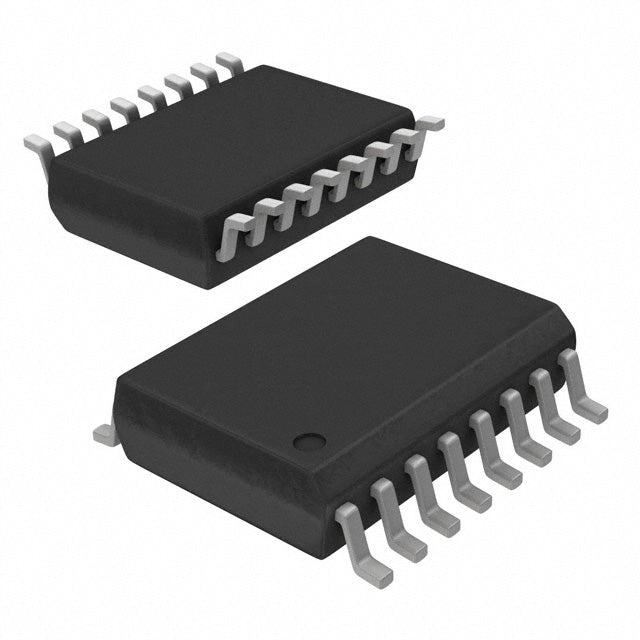

LTC1293BCSW#PBF - High-Performance 12-Bit 8-Channel Data Acquisition System IC
The LTC1293BCSW#PBF from Analog Devices is a precision 12-bit data acquisition system (DAS) featuring an 8-channel analog-to-digital converter (ADC) with 46.5kSPS sampling rate. Engineered for demanding industrial, automotive, telecommunications, and medical applications, this versatile IC delivers exceptional accuracy and reliability with flexible serial and parallel data interfaces.
Key Features & Benefits:
- 12-bit resolution - Delivers precise analog signal conversion for accurate measurements
- 8 input channels - Enables simultaneous multi-signal acquisition and monitoring
- 46.5k samples/second - Fast sampling rate for real-time data capture
- Dual ±5V power supply - Flexible power configuration for diverse system designs
- Serial & parallel interfaces - Adaptable data communication for seamless integration
- 16-SOIC surface mount package - Compact footprint optimizes PCB space utilization
- Commercial temperature range (0°C to 70°C) - Reliable operation in standard environments
- RoHS compliant - Meets environmental and regulatory standards
Target Applications:
- Process control and automation systems
- Multi-channel data loggers and recorders
- Precision instrumentation and measurement equipment
- Automated test equipment (ATE)
- Sensor interface modules
- Industrial monitoring and control systems
- Medical diagnostic equipment
- Telecommunications infrastructure
Why Choose LTC1293BCSW#PBF?
Backed by Analog Devices' industry-leading reputation for quality and innovation, the LTC1293BCSW#PBF ensures long lifecycle support, complete traceability, and consistent availability for mission-critical designs. Ideal for OEMs, EMS providers, and design engineers requiring dependable, high-performance data acquisition solutions.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
LTC1293BCSW#PBF.pdf
