Analog Devices Inc. LTC1294BCSW#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 156.35 | Dhs. 156.35 |
| 15+ | Dhs. 151.42 | Dhs. 2,271.30 |
| 25+ | Dhs. 148.13 | Dhs. 3,703.25 |
| 50+ | Dhs. 139.90 | Dhs. 6,995.00 |
| 100+ | Dhs. 123.44 | Dhs. 12,344.00 |
| N+ | Dhs. 24.69 | Price Inquiry |
Request Quote / Inquiry

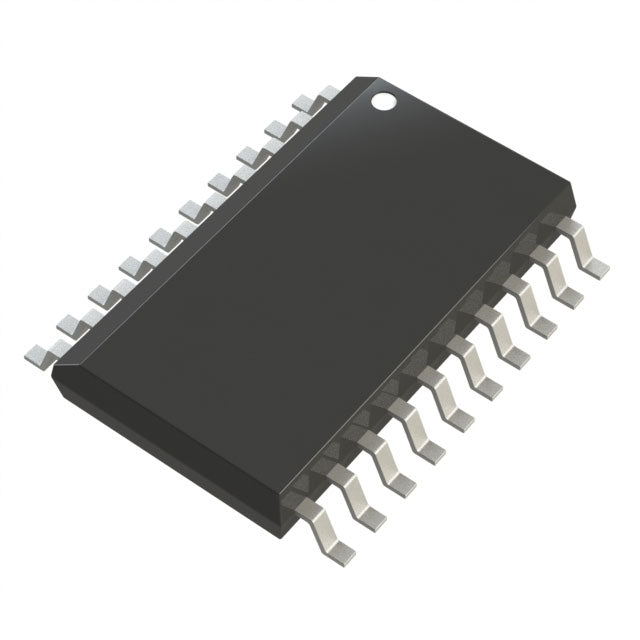

LTC1294BCSW#TRPBF - High-Performance 12-Bit Data Acquisition System
The LTC1294BCSW#TRPBF from Analog Devices is a precision 12-bit, 8-channel data acquisition system (DAS) featuring an integrated analog-to-digital converter (ADC) with a 46.5kSPS sampling rate. Designed for industrial, instrumentation, and embedded applications requiring accurate multi-channel analog signal conversion.
Key Features & Benefits
- 12-Bit Resolution: Delivers precise analog-to-digital conversion with 4096 discrete levels for accurate signal representation
- 8-Channel Multiplexed Input: Monitor multiple analog signals with a single IC, reducing board space and system cost
- 46.5kSPS Sampling Rate: Fast enough for real-time monitoring and control applications
- Flexible Interface: Serial and parallel data interfaces support various microcontroller architectures
- Dual Supply Operation: ±5V and 5V supply options provide design flexibility
- Surface Mount Package: 20-SOIC package enables automated assembly and compact PCB layouts
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
- Tape & Reel Packaging: Ready for high-volume automated production
Typical Applications
- Industrial process control and monitoring systems
- Multi-channel data logging and instrumentation
- Sensor interface circuits for temperature, pressure, and position sensing
- Automated test equipment (ATE)
- Medical diagnostic equipment
- Battery management systems
Why Choose LTC1294BCSW#TRPBF?
Analog Devices' LTC1294 series combines proven reliability with exceptional performance. The integrated multiplexer eliminates external switching components, while the flexible serial/parallel interface simplifies integration with popular microcontrollers and DSPs. Operating across the commercial temperature range (0°C to 70°C), this ADC delivers consistent performance in demanding environments.
As an authorized distributor, we provide genuine Analog Devices components with full traceability, technical support, and fast global shipping. Every unit ships with manufacturer documentation and quality certifications.
Need design support or volume pricing? Contact our applications engineering team for technical assistance and custom quotations.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1294BCSW#TRPBF.pdf
