Analog Devices Inc. LTC1294CCSW#PBF
Regular price
Dhs. 171.61
Regular price
Dhs. 180.64
Sale price
Dhs. 171.61
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 171.61 | Dhs. 171.61 |
| 15+ | Dhs. 166.19 | Dhs. 2,492.85 |
| 25+ | Dhs. 162.58 | Dhs. 4,064.50 |
| 50+ | Dhs. 153.54 | Dhs. 7,677.00 |
| 100+ | Dhs. 135.48 | Dhs. 13,548.00 |
| N+ | Dhs. 27.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

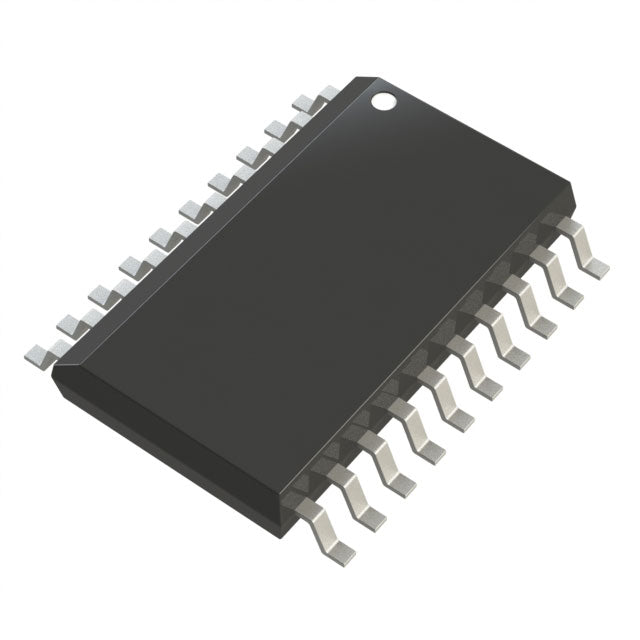

LTC1294CCSW#PBF - High-Performance 12-Bit Data Acquisition System
The LTC1294CCSW#PBF from Analog Devices is a precision 12-bit, 8-channel analog-to-digital converter (ADC) designed for demanding data acquisition applications. With a sampling rate of 46.5kSPS and dual ±5V supply operation, this versatile ADC delivers reliable performance across industrial, medical, and instrumentation systems.
Key Features & Benefits
- 12-Bit Resolution: Provides precise analog-to-digital conversion with excellent accuracy
- 8 Input Channels: Multiplex up to 8 analog signals through a single converter
- 46.5kSPS Sampling Rate: Fast enough for real-time monitoring and control applications
- Flexible Interface: Serial and parallel data interface options for easy system integration
- Dual Supply Operation: ±5V or single 5V supply flexibility
- Surface Mount Package: 20-SOIC package optimized for automated assembly
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Perfect for industrial process control, medical instrumentation, test and measurement equipment, automotive diagnostics, and multi-channel sensor monitoring systems.
Quality & Compliance
All components are sourced from authorized distributors with full traceability. RoHS/REACH compliant. Datasheet and technical support available.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1294CCSW#PBF.pdf
×
