Analog Devices Inc. LTC1294DCSW#PBF
Regular price
Dhs. 113.02
Regular price
Dhs. 118.97
Sale price
Dhs. 113.02
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 113.02 | Dhs. 113.02 |
| 15+ | Dhs. 109.45 | Dhs. 1,641.75 |
| 25+ | Dhs. 107.07 | Dhs. 2,676.75 |
| 50+ | Dhs. 101.12 | Dhs. 5,056.00 |
| 100+ | Dhs. 89.23 | Dhs. 8,923.00 |
| N+ | Dhs. 17.85 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

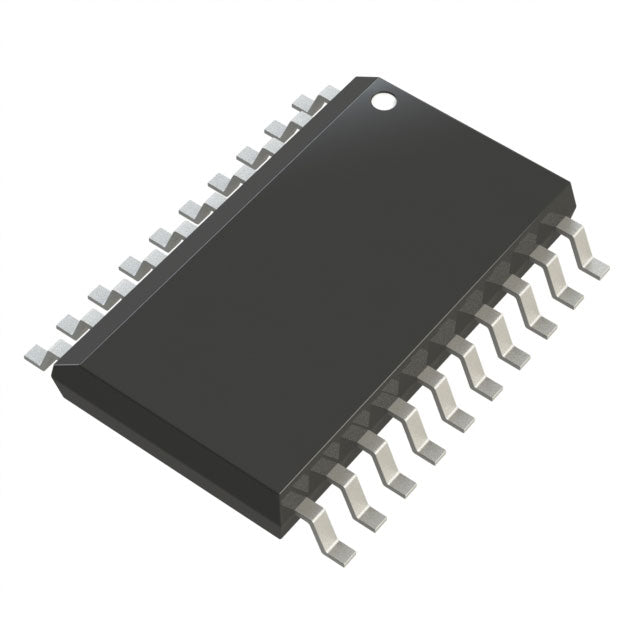

LTC1294DCSW#PBF - High-Performance 12-Bit Data Acquisition System IC
The LTC1294DCSW#PBF from Analog Devices Inc. is a precision 12-bit, 8-channel analog-to-digital converter (ADC) designed for demanding data acquisition applications in industrial, automotive, medical, and aerospace systems.
Key Features & Benefits
- 12-bit resolution ensures accurate signal conversion for precision measurements
- 8 independent channels enable simultaneous monitoring of multiple analog inputs
- 46.5kSPS sampling rate delivers fast, real-time data acquisition
- Dual ±5V supply operation provides flexible power configuration
- Serial and parallel data interfaces for versatile system integration
- Surface mount 20-SOIC package optimized for automated assembly
- RoHS compliant meeting environmental standards
- 0°C to 70°C operating range suitable for commercial applications
Applications
This data acquisition IC is ideal for:
- Industrial process control and monitoring systems
- Medical instrumentation and diagnostic equipment
- Automotive sensor interfaces and test equipment
- Precision measurement and calibration systems
- Multi-channel data logging applications
Quality & Compliance
As an authorized distributor, we provide 100% authentic Analog Devices components with full traceability and RoHS/REACH compliance documentation. Each unit includes manufacturer datasheets and quality certifications.
Design Support
Access comprehensive technical resources including datasheets, reference designs, and application notes to accelerate your design-in process and ensure optimal performance in your data acquisition system.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1294DCSW#PBF.pdf
×
