Analog Devices Inc. LTC1294DCSW#TRPBF
Regular price
Dhs. 73.95
Regular price
Dhs. 77.84
Sale price
Dhs. 73.95
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 73.95 | Dhs. 73.95 |
| 15+ | Dhs. 71.61 | Dhs. 1,074.15 |
| 25+ | Dhs. 70.06 | Dhs. 1,751.50 |
| 50+ | Dhs. 66.16 | Dhs. 3,308.00 |
| 100+ | Dhs. 58.38 | Dhs. 5,838.00 |
| N+ | Dhs. 11.68 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
Product Overview

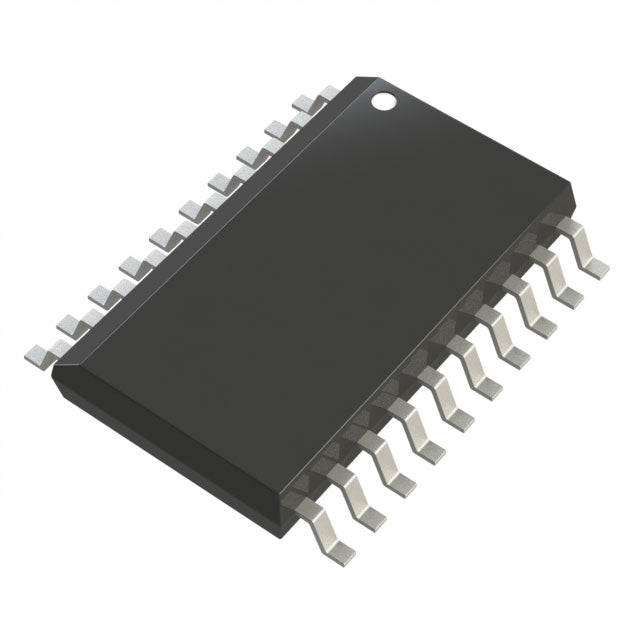

The LTC1294DCSW#TRPBF from Analog Devices is a high-performance 12-bit, 8-channel Data Acquisition System (DAS) featuring an integrated Analog-to-Digital Converter (ADC). Designed for precision measurement applications, this versatile component offers a 46.5kHz sampling rate with both serial and parallel data interfaces, making it ideal for industrial control, instrumentation, and embedded systems requiring accurate multi-channel analog signal conversion.
Key Features
- 12-bit resolution for precise analog-to-digital conversion
- 8 input channels for multi-signal monitoring
- 46.5kHz sampling rate for real-time data acquisition
- Dual ±5V power supply with flexible voltage options
- Serial and parallel interfaces for system integration flexibility
- Surface mount 20-SOIC package for compact PCB designs
- RoHS compliant for environmental compliance
- 0°C to 70°C operating range for commercial applications
Applications
Perfect for industrial automation, process control, medical instrumentation, test and measurement equipment, automotive systems, and embedded data acquisition solutions requiring multi-channel analog input conversion with high accuracy and reliability.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1294DCSW#TRPBF.pdf
×
