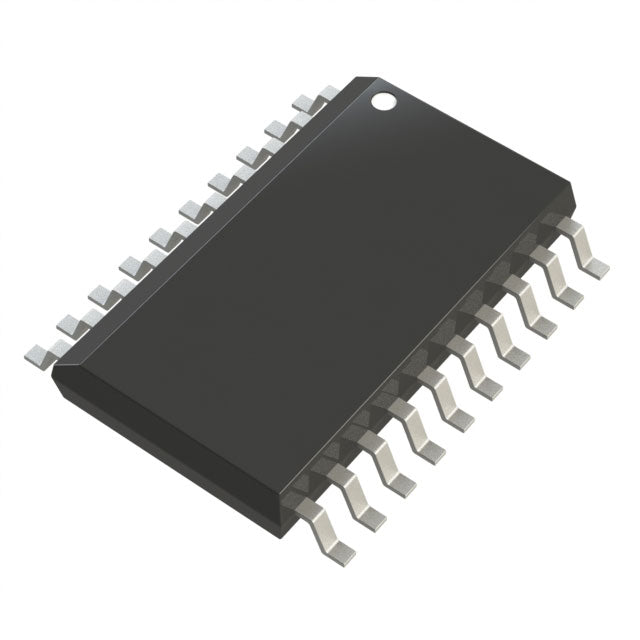

Analog Devices Inc. LTC1296BCSW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 89.98 | Dhs. 89.98 |
| 15+ | Dhs. 87.12 | Dhs. 1,306.80 |
| 25+ | Dhs. 85.23 | Dhs. 2,130.75 |
| 50+ | Dhs. 80.50 | Dhs. 4,025.00 |
| 100+ | Dhs. 71.03 | Dhs. 7,103.00 |
| N+ | Dhs. 14.21 | Price Inquiry |
Request Quote / Inquiry
LTC1296BCSW#PBF - 12-Bit 8-Channel Data Acquisition ADC
The LTC1296BCSW#PBF from Analog Devices is a high-performance 12-bit analog-to-digital converter (ADC) designed for precision data acquisition systems. Featuring 8 input channels and a 46.5kSPS sampling rate, this versatile ADC supports both serial and parallel data interfaces, making it ideal for industrial control, instrumentation, and embedded system applications.
Key Features:
- 12-bit resolution for accurate signal conversion
- 8-channel multiplexed input
- 46.5k samples per second sampling rate
- Dual ±5V power supply operation
- Serial and parallel data interface options
- Surface mount 20-SOIC package
- Operating temperature range: 0°C to 70°C
- RoHS compliant for environmental standards
This ADC is supplied in tube packaging and is backed by Analog Devices' reputation for long lifecycle support and full traceability, ensuring reliable performance in mission-critical applications across aerospace, industrial automation, medical devices, and telecommunications sectors.
Applications: Industrial process control, medical instrumentation, test and measurement equipment, automotive systems, data logging, sensor interface circuits.
Quality & Compliance: This component meets RoHS and REACH environmental standards and is available with full manufacturer traceability documentation to support your quality management and compliance requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1296BCSW#PBF.pdf
