Analog Devices Inc. LTC1296BIN#PBF
Regular price
Dhs. 95.86
Regular price
Dhs. 100.92
Sale price
Dhs. 95.86
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 95.86 | Dhs. 95.86 |
| 15+ | Dhs. 92.85 | Dhs. 1,392.75 |
| 25+ | Dhs. 90.83 | Dhs. 2,270.75 |
| 50+ | Dhs. 85.78 | Dhs. 4,289.00 |
| 100+ | Dhs. 75.69 | Dhs. 7,569.00 |
| N+ | Dhs. 15.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

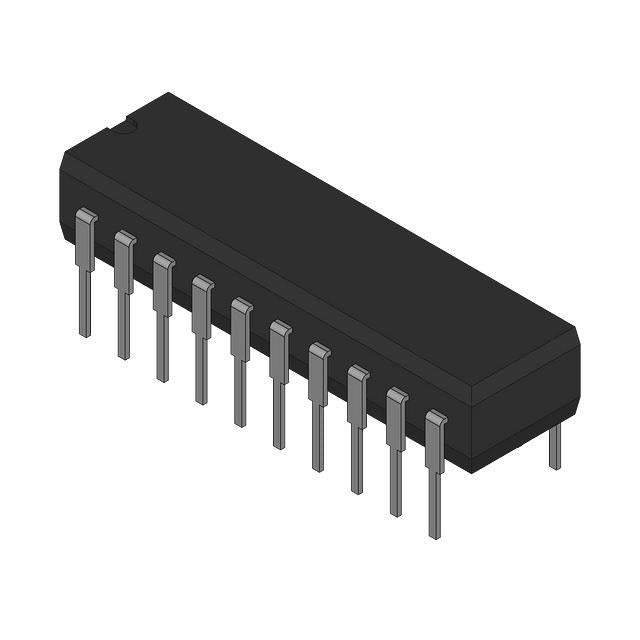

LTC1296BIN#PBF - High-Performance 12-Bit Data Acquisition System
The LTC1296BIN#PBF from Analog Devices is a precision 12-bit, 8-channel analog-to-digital converter (ADC) designed for demanding data acquisition applications. With a 46.5kSPS sampling rate and dual ±5V supply operation, this versatile ADC delivers reliable performance across industrial temperature ranges from -40°C to 85°C.
Key Features & Benefits
- 12-Bit Resolution - Provides accurate signal conversion with 4096 discrete levels for precise measurements
- 8 Input Channels - Multiplex multiple analog signals through a single converter, reducing system complexity and cost
- 46.5kSPS Sampling Rate - Fast enough for real-time monitoring and control applications
- Flexible Interface - Serial and parallel data interfaces for easy integration with microcontrollers and processors
- Wide Operating Range - Industrial-grade -40°C to 85°C temperature specification ensures reliable operation in harsh environments
- Through-Hole Package - 20-DIP format simplifies prototyping, repair, and legacy system integration
- RoHS Compliant - Meets environmental standards for global market compliance
Ideal Applications
Perfect for industrial automation, process control, instrumentation, medical equipment, automotive systems, and any application requiring multi-channel analog signal acquisition with proven reliability and long-term availability.
As an authorized distributor, we provide genuine Analog Devices components with full traceability, technical support, and long-term lifecycle commitment for your critical designs.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
LTC1296BIN#PBF.pdf
×
