Analog Devices Inc. LTC1296CCN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 60.31 | Dhs. 60.31 |
| 15+ | Dhs. 58.42 | Dhs. 876.30 |
| 25+ | Dhs. 57.15 | Dhs. 1,428.75 |
| 50+ | Dhs. 53.98 | Dhs. 2,699.00 |
| 100+ | Dhs. 47.63 | Dhs. 4,763.00 |
| N+ | Dhs. 9.53 | Price Inquiry |
Request Quote / Inquiry
LTC1296CCN#PBF - 12-Bit 8-Channel Data Acquisition ADC
The LTC1296CCN#PBF from Analog Devices is a high-performance 12-bit, 8-channel analog-to-digital converter (ADC) designed for precision data acquisition systems. With a 46.5kSPS sampling rate and dual ±5V supply operation, this ADC delivers reliable performance for industrial, automotive, medical, and aerospace applications requiring long-term availability and full traceability.
Key Features & Benefits
- 12-Bit Resolution: Accurate signal conversion for precision measurement and control systems
- 8 Input Channels: Multiplex multiple analog signals with a single converter
- 46.5kSPS Sampling Rate: Fast enough for real-time monitoring and control applications
- Serial & Parallel Interface: Flexible integration with microcontrollers and processors

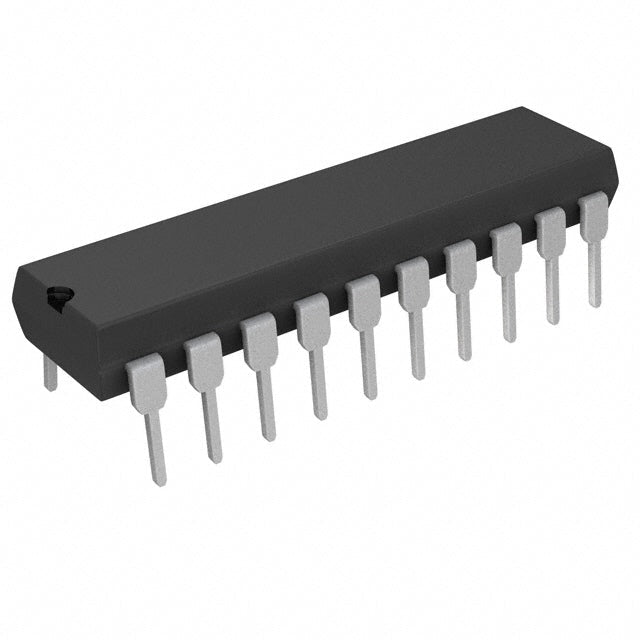

- Through-Hole DIP-20 Package: Easy prototyping, repair, and legacy board compatibility
- RoHS Compliant: Meets environmental and regulatory standards for global markets
- Long Lifecycle Commitment: Authorized distribution with full manufacturer support and traceability
Typical Applications
Industrial process control, medical instrumentation, automotive diagnostics, test and measurement equipment, sensor interface modules, multi-channel data loggers, and embedded control systems.
Authorized Distributor: All components ship with full manufacturer traceability, original packaging options, and compliance documentation (RoHS/REACH). Contact us for volume pricing, lead times, and custom packaging requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
LTC1296CCN#PBF.pdf
