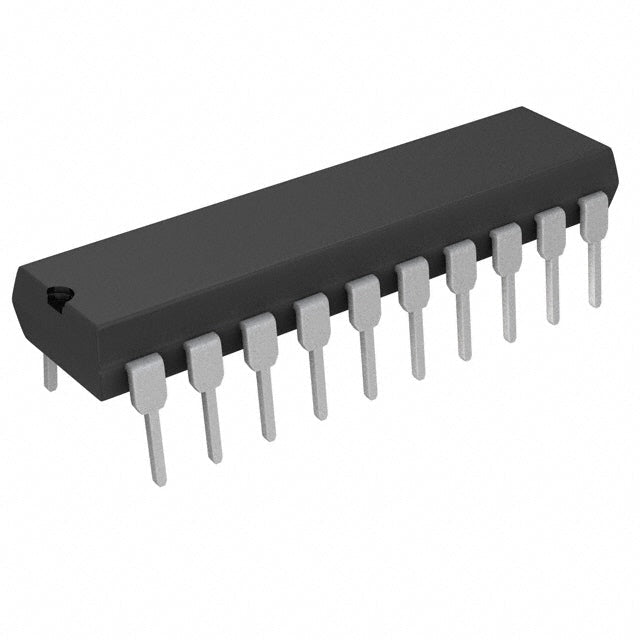

Analog Devices Inc. LTC1296CIN#PBF
Regular price
$29.31
Regular price
$30.85
Sale price
$29.31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.31 | $29.31 |
| 15+ | $28.38 | $425.70 |
| 25+ | $27.77 | $694.25 |
| 50+ | $26.22 | $1,311.00 |
| 100+ | $23.14 | $2,314.00 |
| N+ | $4.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
LTC1296CIN#PBF - 12-Bit 8-Channel Data Acquisition System ADC
The LTC1296CIN#PBF from Analog Devices Inc. is a high-performance 12-bit, 8-channel analog-to-digital converter (ADC) designed for precision data acquisition applications. With a sampling rate of 46.5kSPS and dual ±5V supply operation, this ADC delivers reliable performance across industrial, automotive, and instrumentation systems operating from -40°C to 85°C.
Key Features:
- 12-bit resolution for precise analog signal conversion
- 8 input channels for multi-signal monitoring
- 46.5kSPS sampling rate for real-time data capture
- Serial and parallel data interface flexibility
- Dual ±5V power supply compatibility
- Extended industrial temperature range: -40°C to 85°C
- Through-hole DIP-20 package for easy PCB integration
- RoHS compliant for environmental standards
Applications: Industrial process control, medical instrumentation, automotive diagnostics, test and measurement equipment, multi-channel sensor monitoring systems.
As an authorized distributor, we guarantee 100% authentic components with full traceability and manufacturer documentation support. All products ship with RoHS/REACH compliance certification.
LTC1296CIN#PBF.pdf
×
