Analog Devices Inc. LTC1296DCN#PBF
Regular price
Dhs. 89.42
Regular price
Dhs. 94.14
Sale price
Dhs. 89.42
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 89.42 | Dhs. 89.42 |
| 15+ | Dhs. 86.61 | Dhs. 1,299.15 |
| 25+ | Dhs. 84.73 | Dhs. 2,118.25 |
| 50+ | Dhs. 80.02 | Dhs. 4,001.00 |
| 100+ | Dhs. 70.61 | Dhs. 7,061.00 |
| N+ | Dhs. 14.12 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

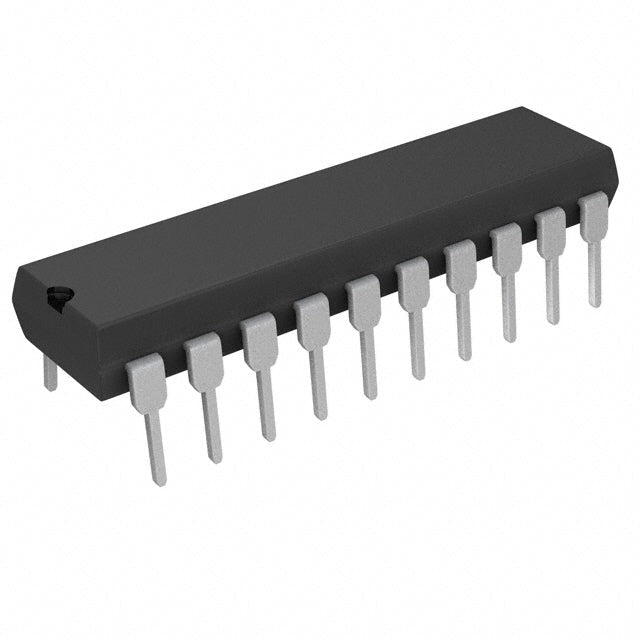

LTC1296DCN#PBF - 12-Bit 8-Channel Data Acquisition ADC
The LTC1296DCN#PBF from Analog Devices is a high-performance 12-bit, 8-channel analog-to-digital converter (ADC) designed for precision data acquisition systems. With a 46.5kSPS sampling rate and dual ±5V supply operation, this ADC delivers reliable performance for industrial, instrumentation, and embedded applications requiring multi-channel analog signal conversion.
Key Features & Benefits
- 12-bit resolution ensures accurate signal digitization for precision measurements
- 8 input channels enable simultaneous monitoring of multiple analog signals
- 46.5kSPS sampling rate supports real-time data acquisition requirements
- Serial and parallel data interfaces provide flexible system integration options
- Dual ±5V supply operation simplifies power design in bipolar signal applications
- 0°C to 70°C operating range suitable for commercial and industrial environments
- 20-DIP through-hole package facilitates prototyping and legacy system integration
- RoHS compliant meets environmental and regulatory standards
Applications
Ideal for industrial process control, test and measurement equipment, medical instrumentation, automotive diagnostics, multi-channel sensor monitoring, and embedded data acquisition systems requiring reliable analog-to-digital conversion with proven long-term availability.
Authorized Distributor | Full traceability | Long lifecycle commitment | Technical support available
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
LTC1296DCN#PBF.pdf
×
