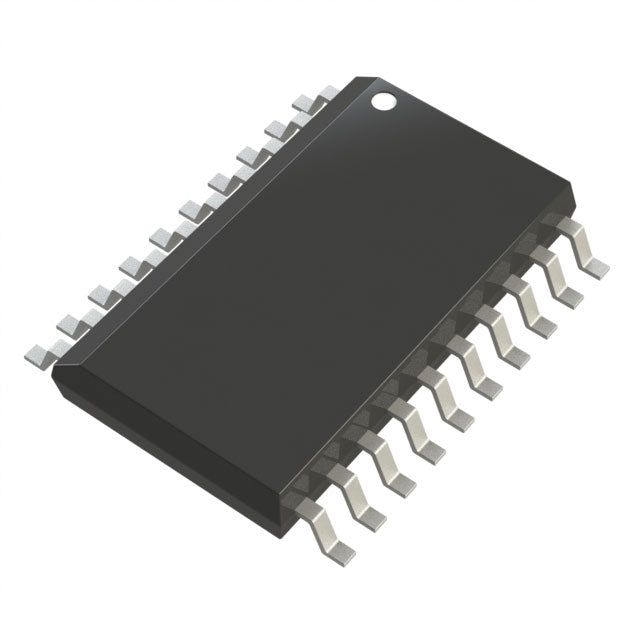

Analog Devices Inc. LTC1296DCSW#TRPBF
Regular price
Dhs. 56.87
Regular price
Dhs. 59.87
Sale price
Dhs. 56.87
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 56.87 | Dhs. 56.87 |
| 15+ | Dhs. 55.08 | Dhs. 826.20 |
| 25+ | Dhs. 53.88 | Dhs. 1,347.00 |
| 50+ | Dhs. 50.89 | Dhs. 2,544.50 |
| 100+ | Dhs. 44.90 | Dhs. 4,490.00 |
| N+ | Dhs. 8.98 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
Product Overview
The LTC1296DCSW#TRPBF from Analog Devices is a high-performance 12-bit, 8-channel data acquisition system (DAS) featuring an integrated analog-to-digital converter (ADC). Designed for precision measurement applications, this versatile component offers a 46.5kHz sampling rate with both serial and parallel data interfaces, making it ideal for industrial control, instrumentation, and embedded systems.
Key Features
- 12-bit resolution for accurate signal conversion
- 8 independent input channels for multi-signal monitoring
- 46.5kHz sampling rate for real-time data acquisition
- Dual ±5V power supply operation
- Serial and parallel data interface options
- Surface mount 20-SOIC package for compact PCB designs
- Operating temperature range: 0°C to 70°C
- RoHS compliant for environmental standards
Applications
Perfect for industrial automation, process control systems, medical instrumentation, test and measurement equipment, and multi-channel sensor monitoring applications requiring reliable analog-to-digital conversion.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 46.5k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| ROHS |  |
LTC1296DCSW#TRPBF.pdf
×
