Analog Devices Inc. LTC1297BCN8#PBF
Regular price
Dhs. 146.20
Regular price
Dhs. 153.87
Sale price
Dhs. 146.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 146.20 | Dhs. 146.20 |
| 15+ | Dhs. 141.56 | Dhs. 2,123.40 |
| 25+ | Dhs. 138.48 | Dhs. 3,462.00 |
| 50+ | Dhs. 130.79 | Dhs. 6,539.50 |
| 100+ | Dhs. 115.40 | Dhs. 11,540.00 |
| N+ | Dhs. 23.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
LTC1297BCN8#PBF - 12-Bit Dual Channel Data Acquisition System
The LTC1297BCN8#PBF from Analog Devices is a high-performance 12-bit dual-channel data acquisition system (DAS) designed for precision analog-to-digital conversion applications. With a 60kSPS sampling rate and serial/parallel data interface, this ADC delivers reliable performance for industrial, instrumentation, and embedded system designs.
Key Features & Benefits
- 12-Bit Resolution: Provides precise analog-to-digital conversion with 4096 discrete levels for accurate signal representation
- Dual Channel Input: Supports two independent analog input channels for multi-signal monitoring
- 60kSPS Sampling Rate: Fast conversion speed suitable for real-time data acquisition and control systems
- Single 5V Supply: Simplifies power design and reduces system complexity
- Serial & Parallel Interface: Flexible data communication options for easy microcontroller integration

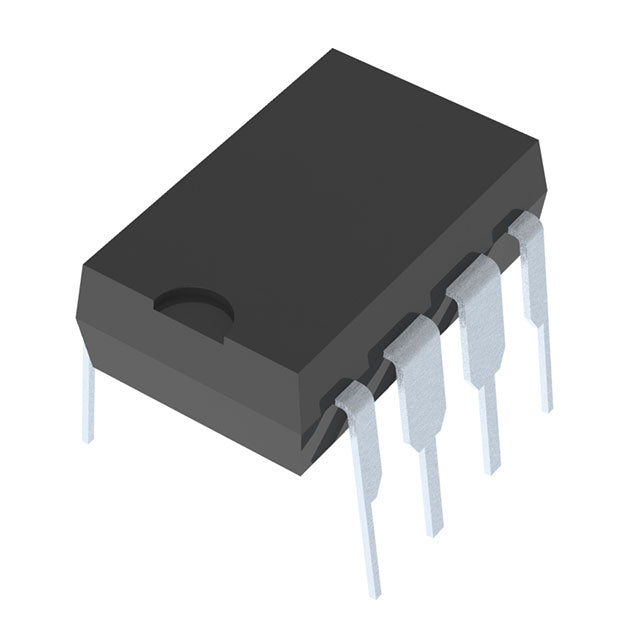

- Through-Hole 8-DIP Package: Ideal for prototyping, legacy designs, and applications requiring robust mechanical connections
- 0°C to 70°C Operating Range: Commercial temperature grade for standard industrial environments
Applications
This data acquisition IC is ideal for sensor signal conditioning, process control, test and measurement equipment, industrial automation, battery monitoring systems, and embedded data logging applications.
Authorized Distributor - Full Traceability
We supply genuine Analog Devices components with complete manufacturer documentation, authenticity guarantees, and long lifecycle support to protect your design investments.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 60k |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
LTC1297BCN8#PBF.pdf
×
