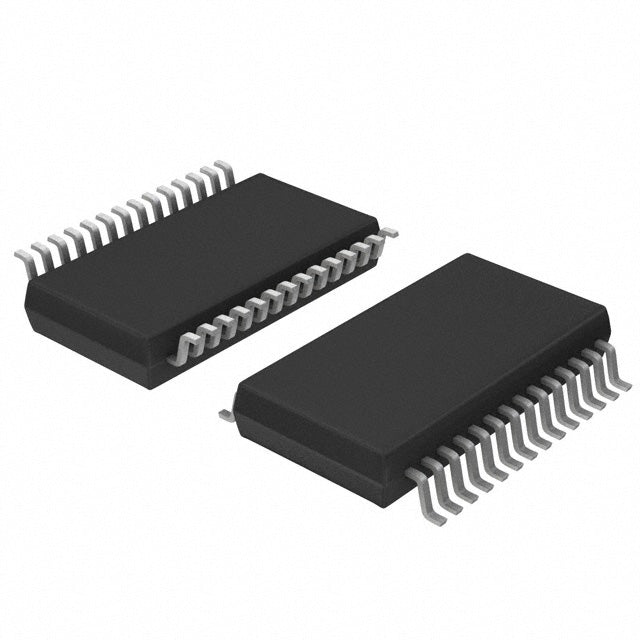

Analog Devices Inc. LTC1409CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.35 | $15.35 |
| 15+ | $14.87 | $223.05 |
| 25+ | $14.54 | $363.50 |
| 50+ | $13.74 | $687.00 |
| 100+ | $12.12 | $1,212.00 |
| N+ | $2.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1409CG#PBF is a high-speed, 12-bit analog-to-digital converter designed for applications requiring fast and accurate signal conversion. It features a single input channel and a sample-and-hold circuit, capable of sampling at up to 800k SPS. The parallel interface enables high-speed data transfer, making it suitable for DSP front-ends and data acquisition systems. With support for both external and internal references, it offers design flexibility in a 28-SSOP package.
- High-Speed Performance: The 800k SPS sampling rate is ideal for capturing fast-changing signals.
- Fast Data Transfer: The parallel interface ensures minimal latency in data communication.
- Design Flexibility: Support for both external and internal references provides options for optimizing system performance.
- Proven Reliability: Designed by Analog Devices, a leader in high-performance converters.
High-Speed Data Acquisition
The 800k SPS sampling rate makes the LTC1409CG#PBF ideal for high-speed DAQ systems in applications like transient capture and waveform analysis.
Digital Signal Processing (DSP) Front-End
Its parallel interface allows for direct, high-throughput connection to DSPs and FPGAs for real-time signal processing.
Medical Imaging Systems
In ultrasound and other imaging equipment, the high speed of this ADC helps digitize fast analog signals for image reconstruction.
Automotive Test Systems
For testing engine control units (ECUs) and sensors, the LTC1409CG#PBF provides the necessary speed to capture rapid signal changes.
Communications Equipment
In base stations and radar systems, this ADC can digitize IF (intermediate frequency) signals for digital down-conversion.
- Q: What is the LTC1409CG#PBF?
- A: It is a 12-bit, 800k SPS analog-to-digital converter with a parallel interface and sample-and-hold circuit.
- Q: What is the resolution of the LTC1409CG#PBF?
- A: It provides 12-bit resolution, offering a good balance between speed and accuracy.
- Q: What is the maximum sampling rate?
- A: The LTC1409CG#PBF supports a high sampling rate of 800k SPS (samples per second).
- Q: How many channels does it have?
- A: It has a single input channel, optimized for high-speed, single-signal conversion.
- Q: What interface does it use?
- A: It features a parallel digital interface for high-speed data transfer to a host processor.
- Q: What are the reference and package options?
- A: It supports both external and internal references and is available in a 28-SSOP package, operating from 0°C to 70°C.
