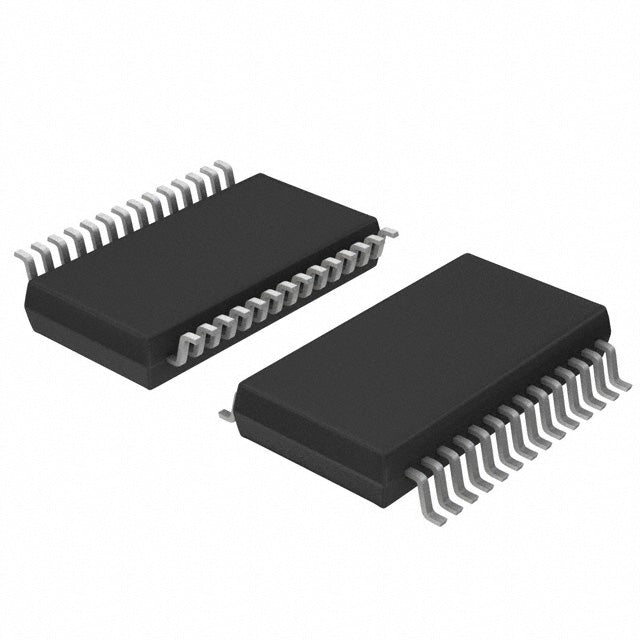

Analog Devices Inc. LTC1410IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.61 | $26.61 |
| 15+ | $25.77 | $386.55 |
| 25+ | $25.21 | $630.25 |
| 50+ | $23.81 | $1,190.50 |
| 100+ | $21.01 | $2,101.00 |
| N+ | $4.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1410IG#PBF from Analog Devices Inc. is a 12-bit, single-channel analog-to-digital converter with a maximum sampling rate of 1.25M SPS. It features a parallel interface for efficient data transfer and an S/H-ADC architecture for accurate signal capture. The device supports both external and internal references, offering design flexibility. Operating over -40°C to 85°C, it is housed in a 28-SSOP package. This ADC is well-suited for industrial data acquisition, communication systems, and medical monitoring, providing a reliable balance of speed and precision.
- 12-Bit Resolution: Provides good dynamic range and accuracy for a wide variety of industrial and communication applications.
- 1.25M SPS Sampling Rate: Offers fast conversion speed, enabling real-time processing of dynamic signals.
- Parallel Interface: Ensures high-speed data transfer with minimal latency, simplifying integration with digital systems.
- Flexible Reference: Internal or external reference options allow optimization for different input ranges and accuracy needs.
- Wide Temperature Range: -40°C to 85°C operation makes it suitable for automotive and industrial environments.
Industrial Data Acquisition
The LTC1410IG#PBF with 12-bit resolution and 1.25M SPS is ideal for industrial data loggers and process control systems, providing sufficient accuracy for monitoring and controlling manufacturing processes.
Communication Systems
In base stations and digital communication links, this ADC can digitize intermediate frequency (IF) signals with 12-bit resolution, supporting QAM modulation and other advanced schemes.
Medical Monitoring Devices
For patient monitoring equipment, the LTC1410IG#PBF offers the speed and resolution needed for accurate ECG and EEG signal acquisition, with the parallel interface enabling fast data transfer to display units.
Automotive Sensor Interfaces
With a -40°C to 85°C temperature range, this ADC is suitable for automotive applications like engine control units (ECUs) and battery management systems, digitizing sensor outputs with high reliability.
Portable Test Instruments
The compact 28-SSOP package and low power consumption make the LTC1410IG#PBF suitable for handheld multimeters and portable oscilloscopes, where space and battery life are critical.
Audio Processing Equipment
In professional audio interfaces and mixing consoles, the 12-bit resolution and 1.25M SPS sampling rate can be used for oversampling and digital filtering, improving audio quality.
- Q: What is the resolution of the LTC1410IG#PBF?
- A: The LTC1410IG#PBF is a 12-bit ADC, providing 4096 discrete levels, offering a good balance between resolution and speed.
- Q: What is the sampling rate of the LTC1410IG#PBF?
- A: It supports a maximum sampling rate of 1.25M SPS, suitable for a wide range of industrial and communication applications.
- Q: How many channels does the LTC1410IG#PBF have?
- A: It is a single-channel (1 input) ADC, optimized for high-performance conversion of one analog signal.
- Q: What interface does the LTC1410IG#PBF use?
- A: It uses a parallel interface for fast and straightforward data transfer to microprocessors or DSPs.
- Q: What is the architecture of the LTC1410IG#PBF?
- A: The architecture is S/H-ADC (Sample-and-Hold), ensuring accurate sampling of fast-changing signals without distortion.
- Q: What is the package type of the LTC1410IG#PBF?
- A: It is available in a 28-SSOP package, which is compact and suitable for space-constrained designs.
