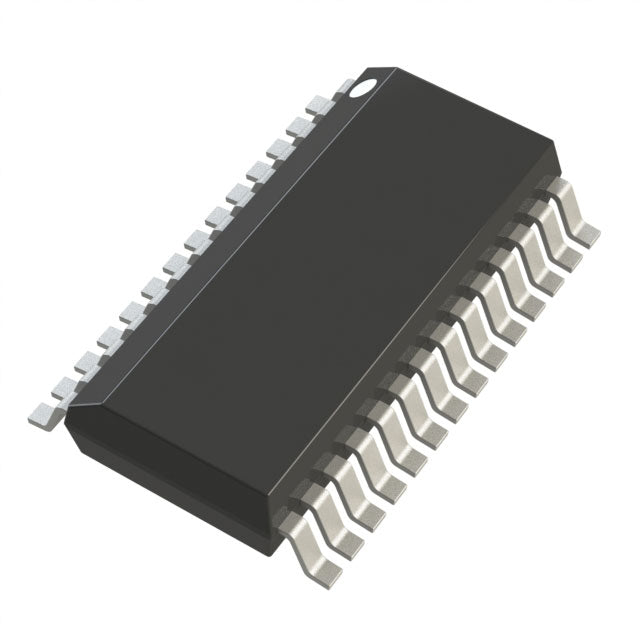

Analog Devices Inc. LTC1414IGN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.42 | $30.42 |
| 15+ | $29.46 | $441.90 |
| 25+ | $28.82 | $720.50 |
| 50+ | $27.22 | $1,361.00 |
| 100+ | $24.02 | $2,402.00 |
| N+ | $4.80 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.2M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1414IGN is a high-precision 14-bit, single-channel analog-to-digital converter from Analog Devices, offering a sampling rate of 2.2 MSPS. Its SAR architecture provides excellent accuracy and low power consumption, making it ideal for industrial and medical applications. The parallel interface ensures fast data transfer to microcontrollers and DSPs. Housed in a compact 28-lead SSOP package, this ADC operates over a -40°C to 85°C temperature range, delivering reliable performance in demanding environments.
- High Resolution: 14-bit accuracy ensures precise signal conversion, reducing errors in critical measurement applications.
- Fast Sampling: 2.2 MSPS rate enables capture of fast-changing signals without missing data, ideal for real-time systems.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Compact SSOP Package: Saves board space while providing good thermal performance, suitable for dense PCB layouts.
High-Precision Data Acquisition
The LTC1414IGN's 14-bit resolution and 2.2 MSPS sampling rate make it ideal for high-precision data acquisition systems in industrial automation, ensuring accurate digitization of analog signals for process control.
Medical Instrumentation
Its combination of speed and precision makes it suitable for medical devices such as patient monitoring and diagnostic equipment, where accurate and fast signal conversion is critical for patient safety.
Industrial Process Control
With support for both external and internal references, this ADC is perfect for industrial process control systems requiring flexible and accurate measurement of 4-20 mA loops and voltage signals.
Scientific Instruments
The high resolution and low noise performance make it ideal for scientific instruments like spectrometers and chromatographs, where precise measurement of analog signals is essential for accurate analysis.
Automotive Test Systems
Its wide -40°C to 85°C temperature range and robust SSOP package make it suitable for automotive test and measurement systems, ensuring reliable performance in harsh environments.
- Q: What is the resolution of the LTC1414IGN?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The LTC1414IGN supports a sampling rate of 2.2 MSPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does this ADC use?
- A: It uses a parallel digital output interface.
- Q: What is the architecture?
- A: It uses a successive approximation (SAR) architecture with sample-and-hold.
- Q: What is the package type?
- A: It is available in a 28-lead SSOP package.
