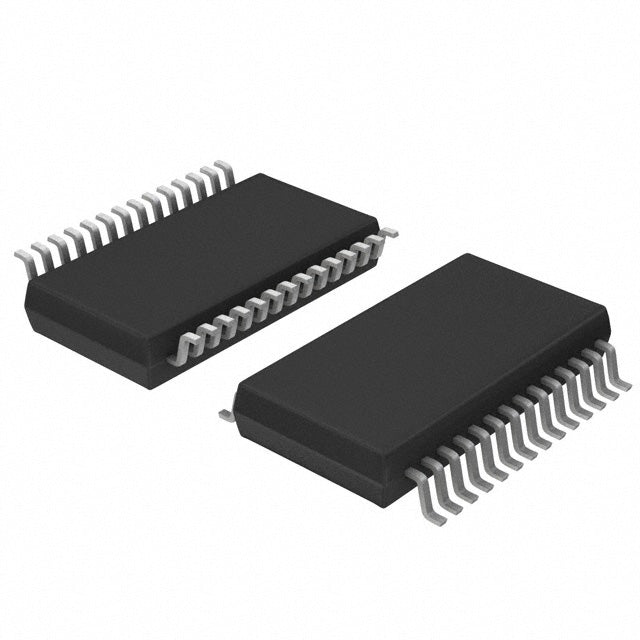

Analog Devices Inc. LTC1419ACG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $43.19 | $43.19 |
| 15+ | $41.82 | $627.30 |
| 25+ | $40.91 | $1,022.75 |
| 50+ | $38.64 | $1,932.00 |
| 100+ | $34.10 | $3,410.00 |
| N+ | $6.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1419ACG#PBF is a high-speed 14-bit analog-to-digital converter from Analog Devices, featuring a sampling rate of 800k SPS. Its single-channel input and parallel interface enable fast data transfer to digital processors. With both external and internal reference options, it offers design flexibility. Housed in a 28-SSOP package, this ADC is perfect for high-performance applications such as medical imaging, industrial automation, and scientific instrumentation.
- High-Speed Sampling: 800k SPS enables capture of fast-changing signals.
- 14-Bit Resolution: Delivers high accuracy for demanding applications.
- Flexible Reference: Supports both external and internal references for design versatility.
- Compact SSOP Package: Saves board space in dense designs.
High-Speed Data Acquisition
The LTC1419ACG#PBF's 800k SPS sampling rate and 14-bit resolution make it ideal for high-speed data acquisition systems in communications and test equipment.
Medical Imaging
In ultrasound and other medical imaging systems, the high speed and precision of this ADC enable clear and detailed image capture.
Industrial Automation
For precise motor control and process automation, the LTC1419ACG#PBF provides fast and accurate conversion of analog feedback signals.
Vibration Analysis
With its high sampling rate, this ADC can capture high-frequency vibration signals for predictive maintenance in industrial machinery.
Scientific Instrumentation
Spectrometers and other scientific instruments benefit from the combination of speed and resolution for accurate spectral analysis.
- Q: What is the LTC1419ACG#PBF?
- A: It is a 14-bit, single-channel analog-to-digital converter with a S/H-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 14 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 800k SPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the reference type?
- A: It supports both external and internal references.
